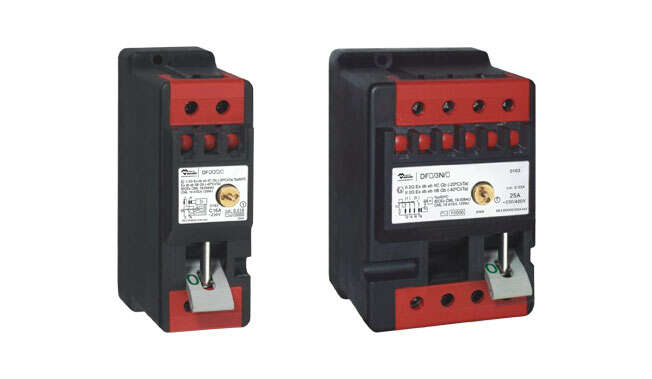

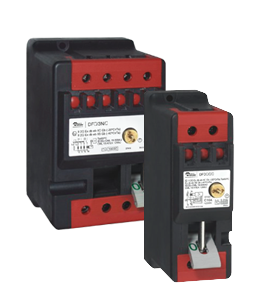

Ex Residual Current Circuit Breaker Module

Delvalle residual current circuit breaker is a component for residual current monitoring and switches systems in the event of resudial currents, for reliable protection of persons in hazardous areas.
It is suitable for rated operational currents of 6A, 10A, 16A, 20A, 25A, 32A and 40A, and rated residual currents of 10, 30, 100 and 300 mA.

Ex Residual Current Circuit Breaker Module · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle

Description

Delvalle residual current circuit breaker is a component for residual current monitoring and switches systems in the event of resudial currents, for reliable protection of persons in hazardous areas.
It is suitable for rated operational currents of 6A, 10A, 16A, 20A, 25A, 32A and 40A, and rated residual currents of 10, 30, 100 and 300 mA.

  • Zones 1 and 2.
  • Rated voltage: 230V / 400V, 50Hz.
  • Rated current: Max. 40A.
  • Rated remained action current: 10, 30, 300 mA.
  • Trip character: C characteristic curve.
  • Number of poles: 1P+N and 4P.
  • Terminals:
    • Main contacts 1 ~ l0mm² (6 ~ l0mm² used in connection with compression lug).
  • Material of enclosure: unsaturated resin.
  • Weight: 1,10kg (1P+N) and 1,90kg (4P).

Regulations

  • Certificates number:
    • CML 19ATEX1299U
    • IECEx CML 19.0084U
  • Type protection:
    • II2G  Ex db eb IIC Gb
  • Standard:
    • Directive 2014/34/EU
    • EN IEC 60079-0:2018
    • EN 60079-1:2014
    • EN IEC 60079-7:2015+A1:2018
    • IEC 60079-0:2017
    • IEC 60079-1:2014-06
    • IEC 60079-7:2017
    • Ambient temperature:
      • -20ºC - +60ºC (IIC)
      • -40ºC - +60ºC (IIB)
    • Operating temperature:
      • -20ºC - +110ºC (IIC)
      • -40ºC - +110ºC (IIB)

    Applications

    Designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.

    Custom Made Solutions
    We offer multiple solutions

    Ex Residual Current Circuit Breaker Module · Atex Delvalle
    Do you need ATEX solutions?
    2020 product catalogues



    Customers also bought:
    Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex DelvalleAtex Delvalle
    Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’...
    Ex Reversing Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for Ex e enclosures in Zones 1 and 2 that you can really...
    Ex Motor Protection Module · Atex DelvalleAtex Delvalle
    Atex Delvalle offers various components that have been specially designed for protecting motors in...
    Ex Relay Module · Atex DelvalleAtex Delvalle
    Delvalle relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Protection Relay Module · Atex DelvalleAtex Delvalle
    Atex Delvalle protection relays offer cost-effective overload protection for motors with adjustment...
    Ex Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Timer Relay Module · Atex DelvalleAtex Delvalle
    Delvalle timer relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you...
    Ex Circuit Breakers Module · Atex DelvalleAtex Delvalle
    Circuit breakers that provide reliable protection for conductors in hazardous areas offers a variety...
    Explosion - Proof Load Isolation Switch Module · Atex DelvalleAtex Delvalle
    Motor, load and control switches for hazardous areas. ...
    Ex Residual Current Circuit Breaker Module · Atex Delvalle

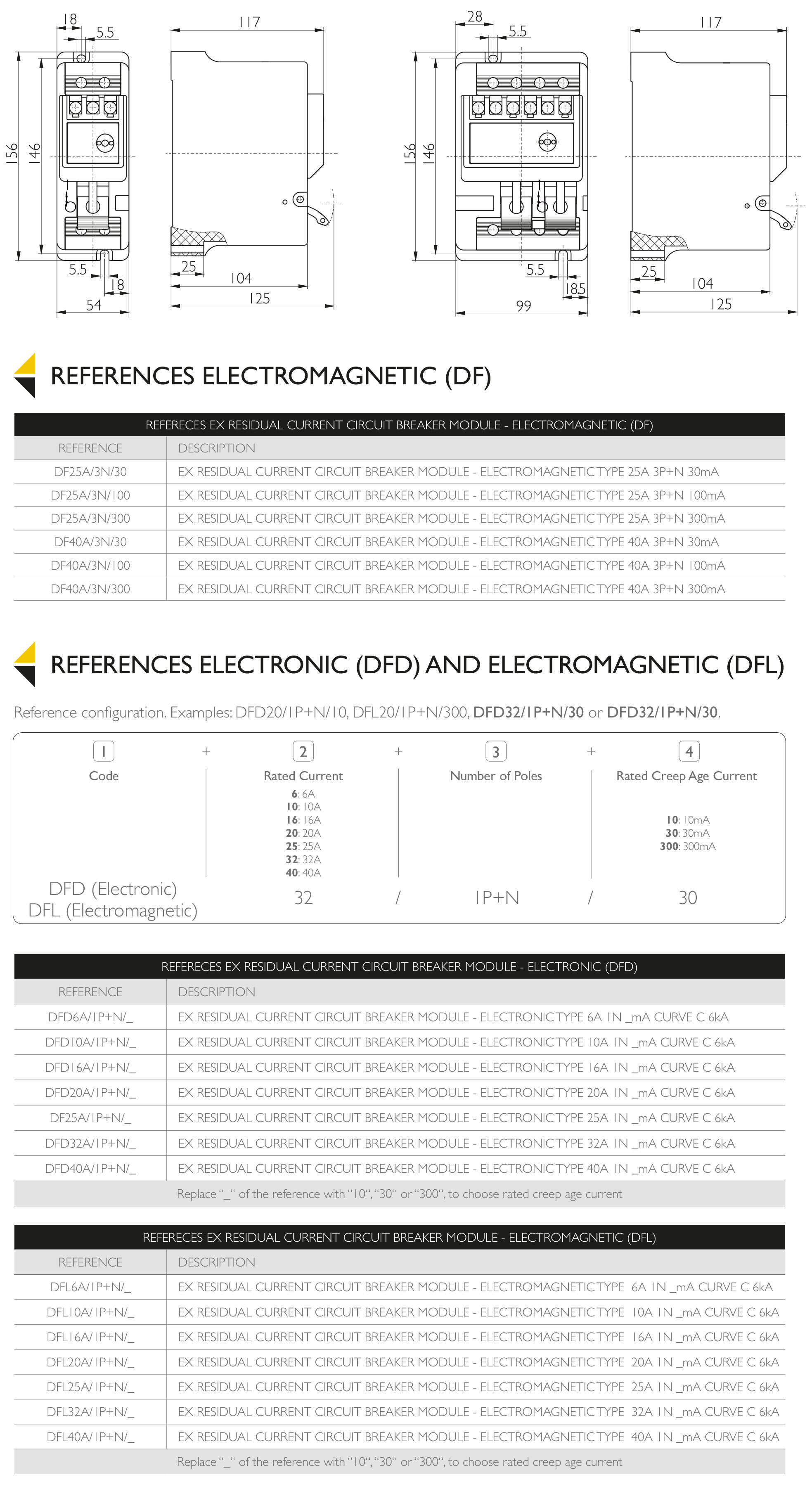

    Sketches
