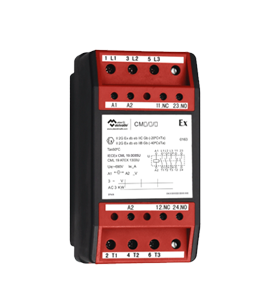

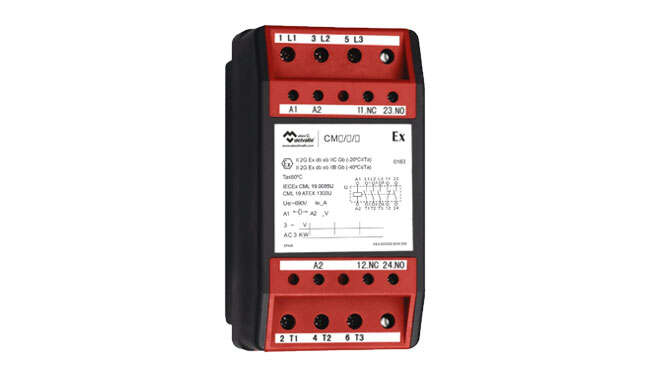

Ex Contactor Module

Delvalle contactors are compact components for ‘Ex e’ enclosures in Zones 1 and 2 that you can really rely on. They are all easy to install, robust and corrosion-resistant.
Delvalle contactors are installed in enclosures with ‘Ex e’ type of protection and can be used for many different applications. All contactors have a corrosion-resistant enclosure and easily accessible connection terminals to make installation easier and allow for safe connection. They can be reliably secured in the enclosure with screws such that they do not vibrate. The contactors are designed comply with AC-3.

Download Product
Ex Contactor Module · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle

Description

Delvalle contactors are compact components for ‘Ex e’ enclosures in Zones 1 and 2 that you can really rely on. They are all easy to install, robust and corrosion-resistant.
Delvalle contactors are installed in enclosures with ‘Ex e’ type of protection and can be used for many different applications. All contactors have a corrosion-resistant enclosure and easily accessible connection terminals to make installation easier and allow for safe connection. They can be reliably secured in the enclosure with screws such that they do not vibrate. The contactors are designed comply with AC-3.

  • Zones 1 and 2.
  • Rated voltage: 690V.
  • Rated current: up to 38A.
  • ON/OFF capacity: up to 18.5kW.
  • Coil voltage: up to 440V.
  • Rated voltage of aux. contact: 690V.
  • Rated current of aux. contact: l 0A.
  • Terminals:
    • Main contacts 1 ~ l0mm² (6 ~ l0mm² used in connection with compression lug).
    • Auxiliary contact l ~ 2.5mm².
  • Material of enclosure: unsaturated resin.
  • Weight: 1,75kg.

Regulations

  • Certificates number:
    • IECEx CML 19.0085U
    • CML 19 ATEX 1300U
  • Type protection:
    • II 2G  Ex db eb IIC Gb (-20ºC)
    • II 2G  Ex db eb IIB Gb (-40ºC)
  • Standard:
    • Directive 2014/34/EU
    • EN IEC 60079-0:2018
    • EN 60079-1:2014
    • EN IEC 60079-7:2015+A1:2018
    • IEC 60079-0:2017
    • IEC 60079-1:2014-06
    • IEC 60079-7:2017
    • Ambient temperature:
      • -20ºC - +60ºC (IIC)
      • -40ºC - +60ºC (IIB)
    • Operating temperature:
      • -20ºC - +110ºC (IIC)
      • -40ºC - +110ºC (IIB)

    Applications

    Designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.

    Custom Made Solutions
    We offer multiple solutions

    Ex Contactor Module · Atex Delvalle
    Do you need ATEX solutions?
    Atex Delvalle has the solution
    2021 product catalogues
    Download Zone

    Customers also bought:
    Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex DelvalleAtex Delvalle

    Ex Magnetic Starter Module (Contactor+Thermorelay)

    Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’...
    Ex Reversing Contactor Module · Atex DelvalleAtex Delvalle

    Ex Reversing Contactor Module

    Delvalle contactors are compact components for Ex e enclosures in Zones 1 and 2 that you can really...
    Ex Residual Current Circuit Breaker Module · Atex DelvalleAtex Delvalle

    Ex Residual Current Circuit Breaker Module

    Delvalle residual current circuit breaker is a component for residual current monitoring and...
    Ex Motor Protection Module · Atex DelvalleAtex Delvalle

    Ex Motor Protection Module

    Atex Delvalle offers various components that have been specially designed for protecting motors in...
    Ex Relay Module · Atex DelvalleAtex Delvalle

    Ex Relay Module

    Delvalle relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Protection Relay Module · Atex DelvalleAtex Delvalle

    Ex Protection Relay Module

    Atex Delvalle protection relays offer cost-effective overload protection for motors with adjustment...
    Ex Timer Relay Module · Atex DelvalleAtex Delvalle

    Ex Timer Relay Module

    Delvalle timer relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you...
    Ex Circuit Breakers Module · Atex DelvalleAtex Delvalle

    Ex Circuit Breakers Module

    Circuit breakers that provide reliable protection for conductors in hazardous areas offers a variety...
    Explosion - Proof Load Isolation Switch Module · Atex DelvalleAtex Delvalle

    Explosion - Proof Load Isolation Switch Module

    Motor, load and control switches for hazardous areas. ...
    Ex Contactor Module · Atex Delvalle

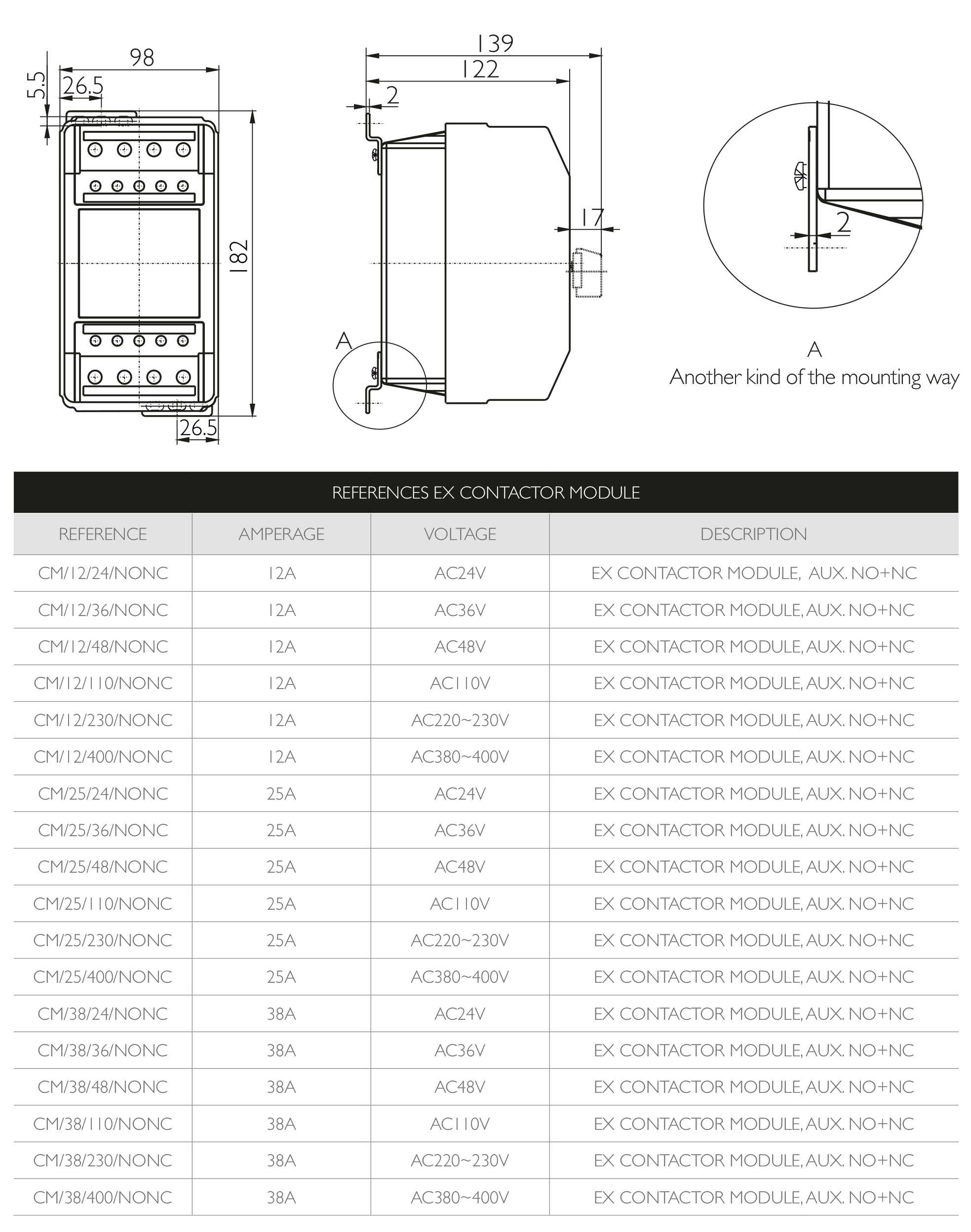

    Sketches
