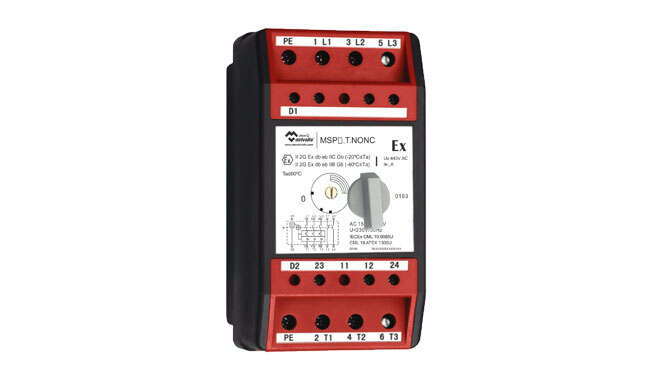

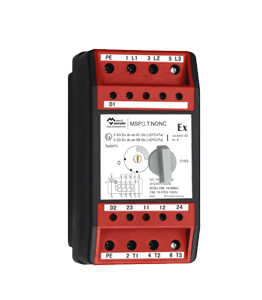

Ex Motor Protection Module

Atex Delvalle offers various components that have been specially designed for protecting motors in Ex Zones 1 and 2. They are built into ‘Ex e’ type enclosures are easy to install, robust and corrosion resistant.
Delvalle offers a great many components with various functions for protecting motors. All motor protection components have a corrosion-resistant enclosure and easily accessible connection terminals to make installation easier and allow for safe connection.  They can be reliably secured in the enclosure with screws such that they do not vibrate.

Ex Motor Protection Module · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle

Description

Atex Delvalle offers various components that have been specially designed for protecting motors in Ex Zones 1 and 2. They are built into ‘Ex e’ type enclosures are easy to install, robust and corrosion resistant.
Delvalle offers a great many components with various functions for protecting motors. All motor protection components have a corrosion-resistant enclosure and easily accessible connection terminals to make installation easier and allow for safe connection.  They can be reliably secured in the enclosure with screws such that they do not vibrate.

  • Zones 1 and 2.
  • Rated voltage: 440V.
  • Setting range of over load trip: 0.l ~ 25A.
  • AC3 motor ON/OFF capacity: high up to 440V/25A.
  • Rated ON/OFF capacity: high up to 65kA.
  • Capacity of auxiliary contact: AC15A   1A/230V.
  • Voltage trip (under voltage): 230V/50Hz.
  • Terminals:
    • Main contacs 1 ~ l0mm² (6 ~ l0mm² used in connection with compression lug).
    • auxiliary contact l ~ 2.5mm².
  • Material of enclosure: unsaturated resin.
  • Weight: 1,65kg.

Regulations

  • Certificates number:
    • IECEx CML 19.0085U
    • CML 19 ATEX 1300U
  • Type protection:
    • II 2G  Ex db eb IIC Gb
    • II 2D  Ex db eb IIB Gb
  • Standard:
    • Directive 2014/34/EU
    • EN IEC 60079-0:2018
    • EN 60079-1:2014
    • EN IEC 60079-7:2015+A1:2018
    • IEC 60079-0:2017
    • IEC 60079-1:2014-06
    • IEC 60079-7:2017
    • Ambient temperature:
      • -20ºC - +60ºC (IIC)
      • -40ºC - +60ºC (IIB)
    • Operating temperature:
      • -20ºC - +110ºC (IIC)
      • -40ºC - +110ºC (IIB)



    • External switch handle:
      • CML 19ATEX3301U
      • IECEx CML 19.0086U
      • II2GD Ex eb IIC Gb / Ex tb IIIC Db
      • Ambient temperature -55ºC to +80ºC

    Applications

    Designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.

    Custom Made Solutions
    We offer multiple solutions

    Ex Motor Protection Module · Atex Delvalle
    Do you need ATEX solutions?
    2021 product catalogues

    Customers also bought:
    Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex DelvalleAtex Delvalle
    Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’...
    Ex Reversing Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for Ex e enclosures in Zones 1 and 2 that you can really...
    Ex Residual Current Circuit Breaker Module · Atex DelvalleAtex Delvalle
    Delvalle residual current circuit breaker is a component for residual current monitoring and...
    Ex Relay Module · Atex DelvalleAtex Delvalle
    Delvalle relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Protection Relay Module · Atex DelvalleAtex Delvalle
    Atex Delvalle protection relays offer cost-effective overload protection for motors with adjustment...
    Ex Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Timer Relay Module · Atex DelvalleAtex Delvalle
    Delvalle timer relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you...
    Ex Circuit Breakers Module · Atex DelvalleAtex Delvalle
    Circuit breakers that provide reliable protection for conductors in hazardous areas offers a variety...
    Explosion - Proof Load Isolation Switch Module · Atex DelvalleAtex Delvalle
    Motor, load and control switches for hazardous areas. ...
    Ex Motor Protection Module · Atex Delvalle

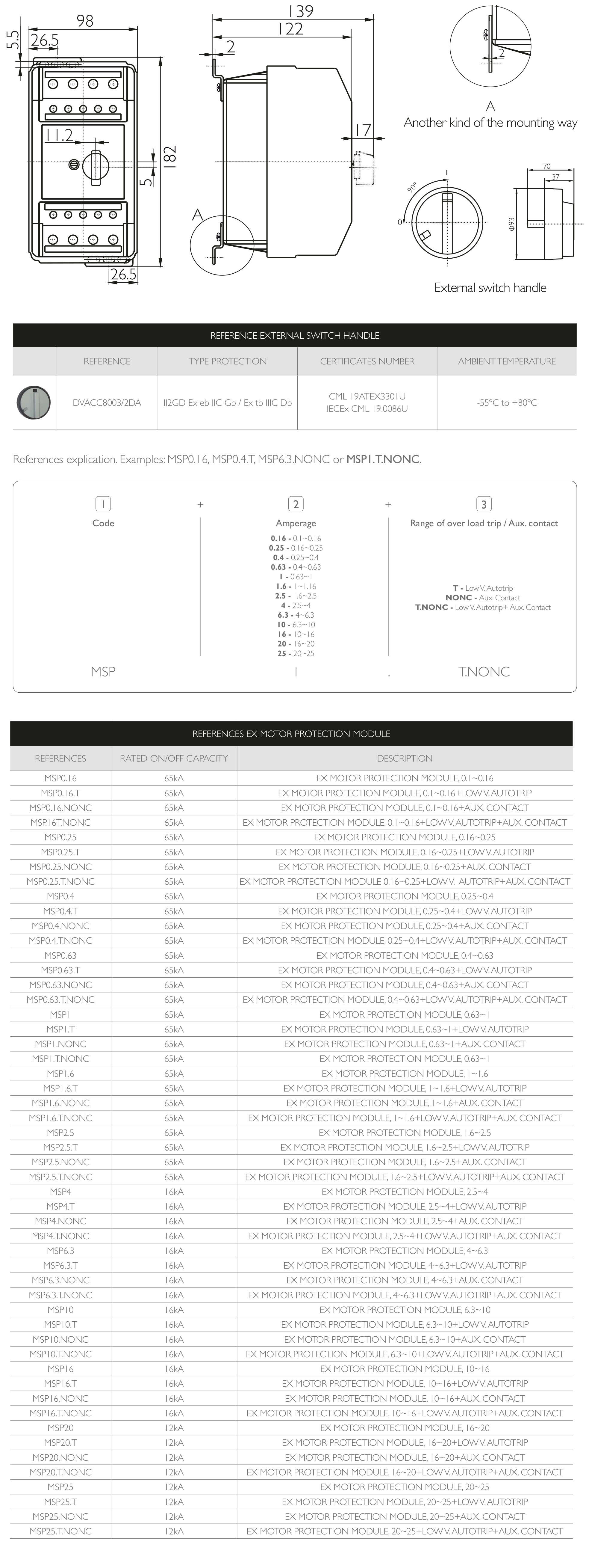

    Sketches
