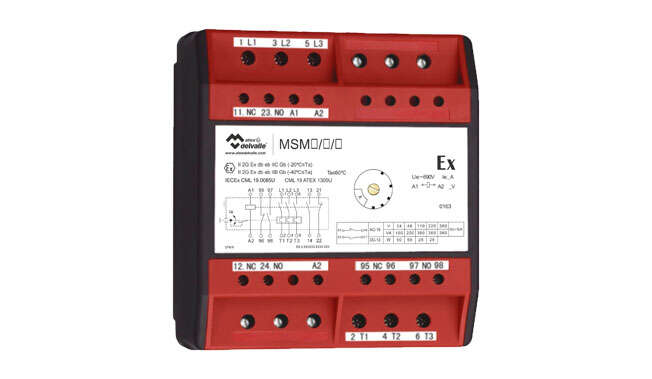

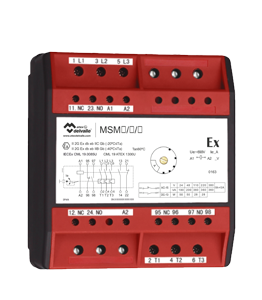

Ex Magnetic Starter Module (Contactor+Thermorelay)

Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.
It is low maintenance, can be connected safely and easily thanks to readily accessible terminals and has an anti-vibration screw connection.

Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle

Description

Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.
It is low maintenance, can be connected safely and easily thanks to readily accessible terminals and has an anti-vibration screw connection.

  • Zones 1 and 2.
  • Rated voltage: 690V.
  • Rated current: up to 38A.
  • Setting range of over load trip: up to 38A.
  • ON/OFF capacity: up to 18.5kW.
  • Coil voltage: up to 440V.
  • Rated voltage of aux. contact: 690V.
  • Rated current aux. contact 95/96NC, 97/98NO:5A.
  • Rated current aux. contact 13/14NO, 21/22NC:10A.
  • Terminals:
    • Main contacts 1 ~ l0mm² (6 ~ l0mm² used in connection with compression lug).
    • Auxiliary contact l ~ 2.5mm².
  • Material of enclosure: unsaturated resin.
  • Weight: 2,5kg.

Regulations

  • Certificates number:
    • IECEx CML 19.0085U
    • CML 19 ATEX 1300U
  • Type protection:
    • II 2G  Ex db eb IIC Gb
    • II 2G  Ex db eb IIB Gb
  • Standard:
    • Directive 2014/34/EU
    • EN IEC 60079-0:2018
    • EN 60079-1:2014
    • EN IEC 60079-7:2015+A1:2018
    • IEC 60079-0:2017
    • IEC 60079-1:2014-06
    • IEC 60079-7:2017
  • Ambient temperature:
    • -20ºC - +60ºC (IIC)
    • -40ºC - +60ºC (IIB)
  • Operating temperature:
    • -20ºC - +110ºC (IIC)
    • -40ºC - +110ºC (IIB)

Applications

Designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.

Custom Made Solutions
We offer multiple solutions

Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues

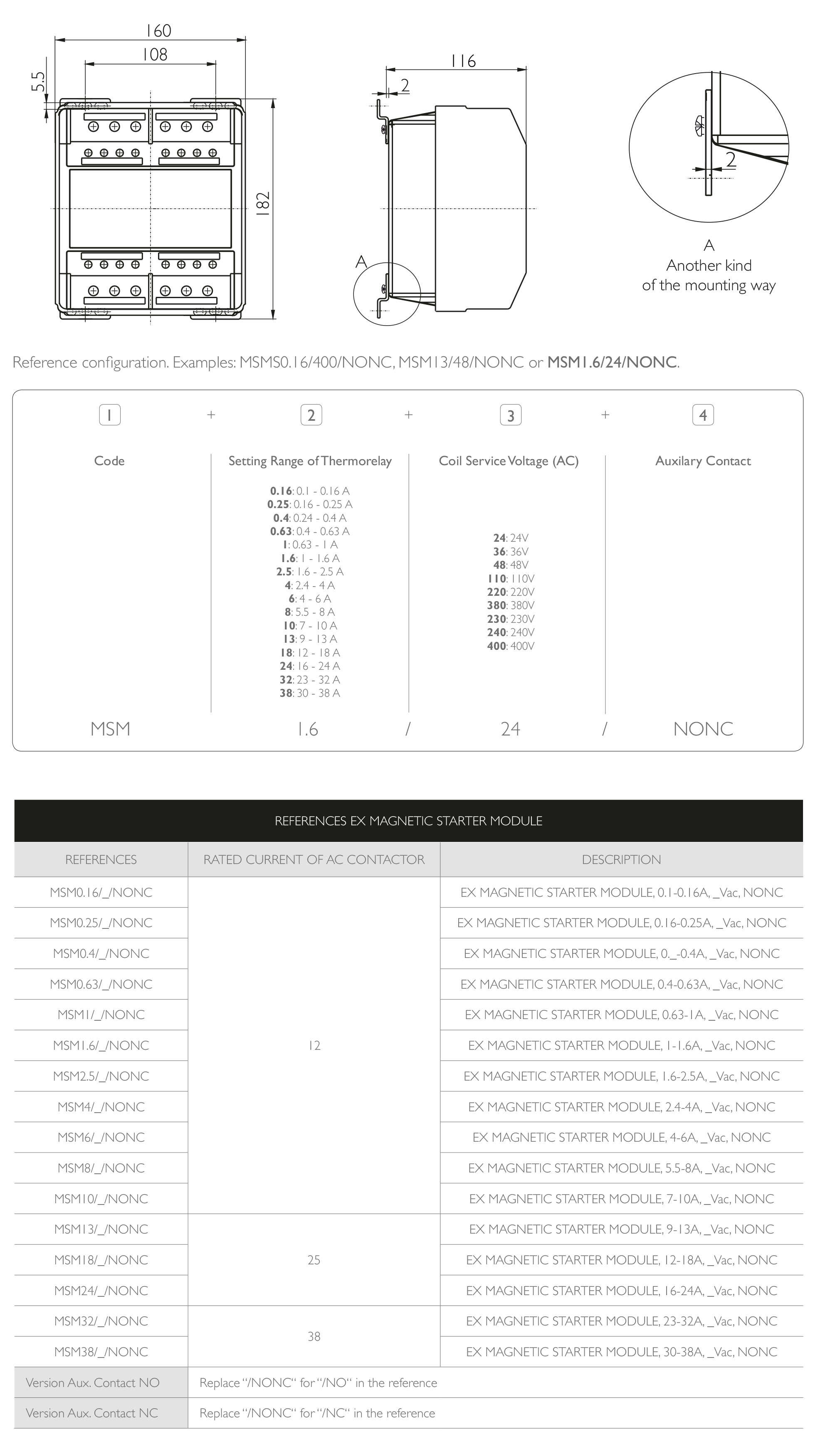

DIAGRAMA ELÉCTRICO
