Safety and Isolation Switches Atex & IECEx

The Ex safety and isolation switch, allows to work with a machine being possible to make safely maintaining, cleaning and overhauling work as long as the switch is with OFF position. It’s formed by two components: A selector and the isolation module.

This kind of switches is used so much in any industry which use machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation are separated, in places considered as potentially explosive, so the use zones are 1, 2, 21 and 22. The switch is protected by a stainless steel AISI 316L enclosure, specifically designed, waterproof, antirust and with IP66 protection degree.

Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle

Description

The Ex safety and isolation switch, allows to work with a machine being possible to make safely maintaining, cleaning and overhauling work as long as the switch is with OFF position.

It’s formed by two components:

• The control component is a selector, which allows or doesn’t allow the current to go through the circuit. The ON position (1) allows the current, so blocks the access to the machine thanks to the mechanical blocker. The OFF position (0) blocks the current, so allow to the worker to make any work with the machine.

•The isolation module allows the current to go through the circuit when the selector is with ON position, and keep the current when the selector is with OFF one.

This kind of switches is used so much in any industry which use machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation are separated, in places considered as potentially explosive, so the use zones are 1, 2, 21 and 22.

The switch is protected by a stainless steel AISI 316L enclosure, specifically designed, waterproof, antirust and with IP66 protection degree. It has a protection “Ex e” and “Ex d”, which allows us to use it in zones with high explosion risk.

Discover the advantages

· The enclosure can be manufactured with stainless Steel 316L.

· It’s a necessary device to make works like maintaining, cleaning or overhauling.

· It gets a total block.

Regulations

ATEX directive and regulation:
- ATEX directive 2014/34/EU

- EN 60079-0:2012

- EN 60079-1:2007

- EN 60079-7:2015

- EN 60079-31:2010

IECEx regulation:
- IEC 60079-0:2011

- IEC 60079-1:2006

- IEC 60079-7:2015

- IEC 60079-31:2013

Enclosure regulation:

- IP regulation (IP65): IEC 60529
- IK regulation (IK10): IEC 62262

Low voltage directive and regulation:

- Directive 2006/95/EC

- EN 61439-12011

- EN 61439-22011



Applications

APPLICATIONS

Specially designed for the following areas where facilities require additional safety atex:
- Oil & Gas.
- Offshore & High sea.
- Industry and automation.
- Chemical and refineries.
- Pharmaceutical.
- Maritime and port.
- Fieldstations.
- Food & Beverage.
- Paper industry.
- Air transport.
- Nuclear and renewable.

And in general, hazardous areas and explosive atmospheres where flameproof equipment are necessary.

Custom Made Solutions
We offer multiple solutions

Safety and Isolation Switches Atex & IECEx · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
  • We have two types of closures:
    •  Screw closure (Geoex)
    •  Hinged closure (Luxorex)
  • There are two kinds of Ex selector, one normal and the other an emergency selector, in red and yellow.
  • Choice of poles between 3 poles, 3 poles + neutral, 4 poles and 6 poles.
  • Possibility of including auxiliary contacts:
  • Enclosure is made in AISI 316L stainless steel for marine or highly corrosive places.
  • Ex cable glands available in any size and thread.
Safety and Isolation Switches Atex & IECEx · Atex Delvalle

Sketches

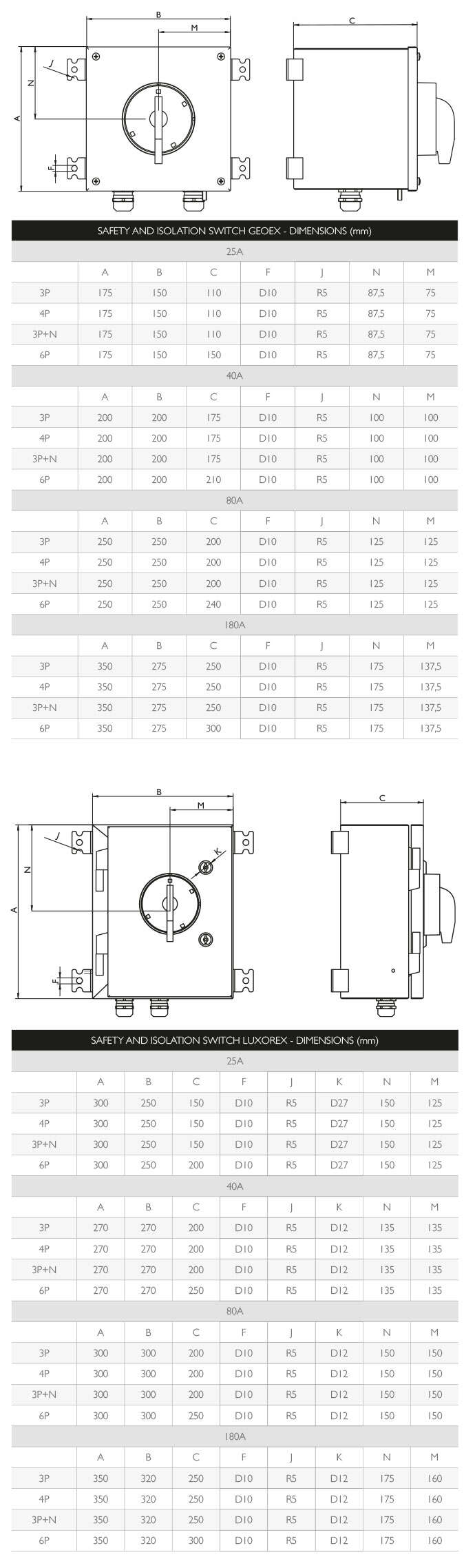

Dimensions · Atex Delvalle
