GRP Safety and Isolation Switches Atex & IECEx

The GRP Ex safety and isolation switch, allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position.
The GRP Ex safety and isolation switch are made of glass fibre reinforced polyester “Ex e”. All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP66 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water -proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.

GRP Safety and Isolation Switches Atex & IECEx · Atex Delvalle
GRP Safety and Isolation Switches Atex & IECEx · Atex Delvalle
GRP Safety and Isolation Switches Atex & IECEx · Atex Delvalle

Description

The GRP Ex safety and isolation switch, allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position.
The GRP Ex safety and isolation switch are made of glass fibre reinforced polyester “Ex e”. All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP66 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water -proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.
Separately certified Ex load isolation switch module is mounted inside. lt can be used to disconnect the power when there is maintenance, clean and repair in the circuit with frenquency AC50/60Hz, rated voltage 230V and 690V, rated current 16~180A.

  • Explosion protection: Zones 1, 2, 21 and 22.
  • Degree of protection IP66.
  • IECEx and Atex international certification.
  • Switch is with interlock which is in the state of lock in, the switch is not turn on.
  • Operation handle with padlock device.
  • Utilization category: AC-23, AC-3.
    • Enclosure features:
      • The enclosures of black are made of glass fibre reinforced polyester and concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar.
      • The entry may have polyamide, nickel-plated or stainless steel Ex cable glands. The unused entries must be sealed with the stopping plugs.

    Discover the advantages

    lt can be used to disconnect the power when there is maintenance, clean and repair in the circuit.
    Get a total stoppage of the machinery so that the necessary activities can be carried out without any risk to the operator.
    It is impossible to start the machine when working on it thanks to the mechanical blocking of the disconnector.
    Boxes reinforced polyester Atex boxes with high corrosion protection, water-proof and dustproof.

    Regulations

    Protection Mode

    This equipment is certified for use in potentially explosive atmospheres in 1, 2, 21 and 22 zones and it has “Ex e” and “Ex d” (protection).

    • Atex mark:
      • CML 19ATEX3303X
      • II 2GD Ex db eb II C T6/T5 Gb
      • Ex tb III T80°C/T95°C Db
      • IECEx mark:
        • IECEx CML 19.0088X
        • Ex db eb II C T6/T5 Gb
        • Ex tb III C T80ºC/T95ºC Db



      Normative

      • Atex directive and regulations:
        • Atex directive 2014/34/UE
        • EN 60079-0:2018
        • EN 60079-1:2014
        • EN 60079-7:2015
        • EN 60079-31:2014
      • IECEx regulations:
        • IEC 60079-0:2018
        • IEC 60079-1:2014
        • IEC 60079-7:2015
        • IEC 60079-31:2014
      • Enclosure regulations:
        • Degree of protection IP66
        • Certificate numbers:
          • IECEx CML 19.0088X
          • CML 19 ATEX 3303X
        • Protection type:
          • II 2GD Ex db eb ib mb llC T5 Gb
          • Ex ib tb lllC T95ºC Db
        • Normative:
          • Directive 2014/34/EU
        • Operating temperature (ambience):
          • -40ºC
      • Low voltage directive and regulation:
        • Directive 2014/35/UE
        • EN 61439-12011
        • EN 61439-22011

      Applications

      This kind of switch is commonly used in any industry which uses machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation kept separate, in places considered as potentially explosive, such as zones1, 2, 21 and 22.

      Custom Made Solutions
      We offer multiple solutions

      GRP Safety and Isolation Switches Atex & IECEx · Atex Delvalle
      Do you need ATEX solutions?
      2022 product catalogues
      • The Ex switch rated current is between: 18A, 25A, 40A, 80A and 180A.
      • The switch has two models of selectors:
        • black operation handle is standard type
        • red/yellow operation handle is emergency stop type
      • Choice of poles between 3 poles, 3 poles + neutral, 4 poles and 6 poles.
      • Possibility of including auxiliary contacts.
      • Atex cableglands:
        • polyamide
        • nickel-plated brass
        • stainless steel AISI 303L,  AISI 304L or AISI 316L
      Customers also bought:
      Ex Safety Switches and Selectors · Atex DelvalleAtex Delvalle
      Atex safety switches and selectors are specially designed to perform checks, maneuvers and as...
      Safety and Isolation Switches Atex & IECEx · Atex DelvalleAtex Delvalle
      The Ex safety and isolation switch, allows to work with a machine being possible to make safely...
      Motor Starters - Motor Protection Atex & IECEx · Atex DelvalleAtex Delvalle
      The Ex motor protection has been designed to get in one device the ability to protect one electric...
      GRP Safety and Isolation Switches Atex & IECEx · Atex Delvalle

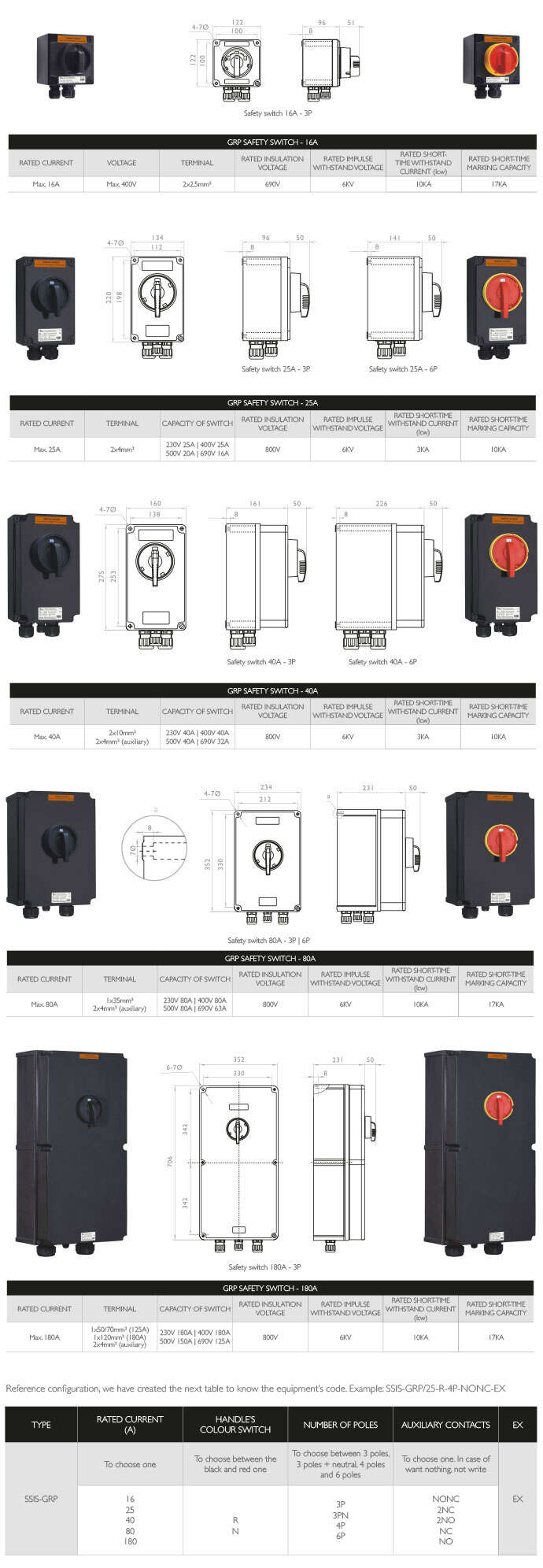

      Sketches
