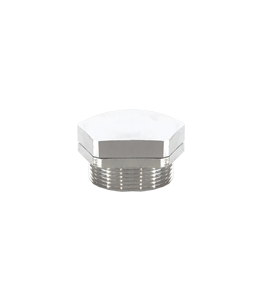

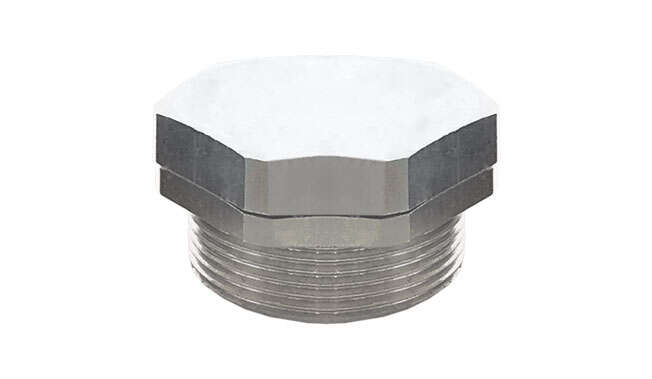

Plug Ex d/e NPT Thread IP68

Plugs Ex d/e blind metric stainless steel thread Atex IP66 - IP68. Operating temperature of -60°C to + 200°C.

The plugs are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Call us now and save money!

Plug Ex d/e NPT Thread IP68 · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IP68 · Atex Delvalle

Description

Plugs Ex d/e blind metric thread. Operating temperature of -60°C to + 200°C. The plugs are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR

Thread:

  • Entry
  • Conic

Protection class: EN 60529 IP66 / IP68

Operating temperature of -60°C to + 200°C.

Discover the advantages



    Regulations

    Normative and marking:

    • II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d/e I Mb
    • EN 60079-0 2009 /60079-1 2007/ 60079-31 2009

    Protection class: EN 60529 IP66 / IP68
    Application area: Zones 1, 2, 21 and 22 and Group Gas IIA, IIB and IIC
    Temperature range: -60°C to +200°C

    Custom Made Solutions
    We offer multiple solutions

    Plug Ex d/e NPT Thread IP68 · Atex Delvalle
    Do you need ATEX solutions?
    2021 product catalogues

    Material:

    • Nickel-plated brass
    • Stainless steel AISI303L
    • Stainless steel AISI304L
    • Stainless steel AISI316L

    Thread:

    • Entry
    • Conic
    Customers also bought:
    Cable Glands Atex Polyamide IP68 · Atex DelvalleAtex Delvalle
    Cable glands polyamide thread metric IP68 made by AtexDelvalle are used for passing, holding and...
    Cable Glands Atex Increased Security IP68 · Atex DelvalleAtex Delvalle
    Cable glands Atex thread metric increased security IP66 - IP68 made by Atex Delvalle are used for...
    Cable Glands Atex Unarmoured Ex e IP68 · Atex DelvalleAtex Delvalle
    Cable glands unarmoured Ex e nickel plated and stainless steel IP66 - IP68 made by Atex Delvalle...
    Plug Ex d/e NPT Thread IP68 · Atex Delvalle

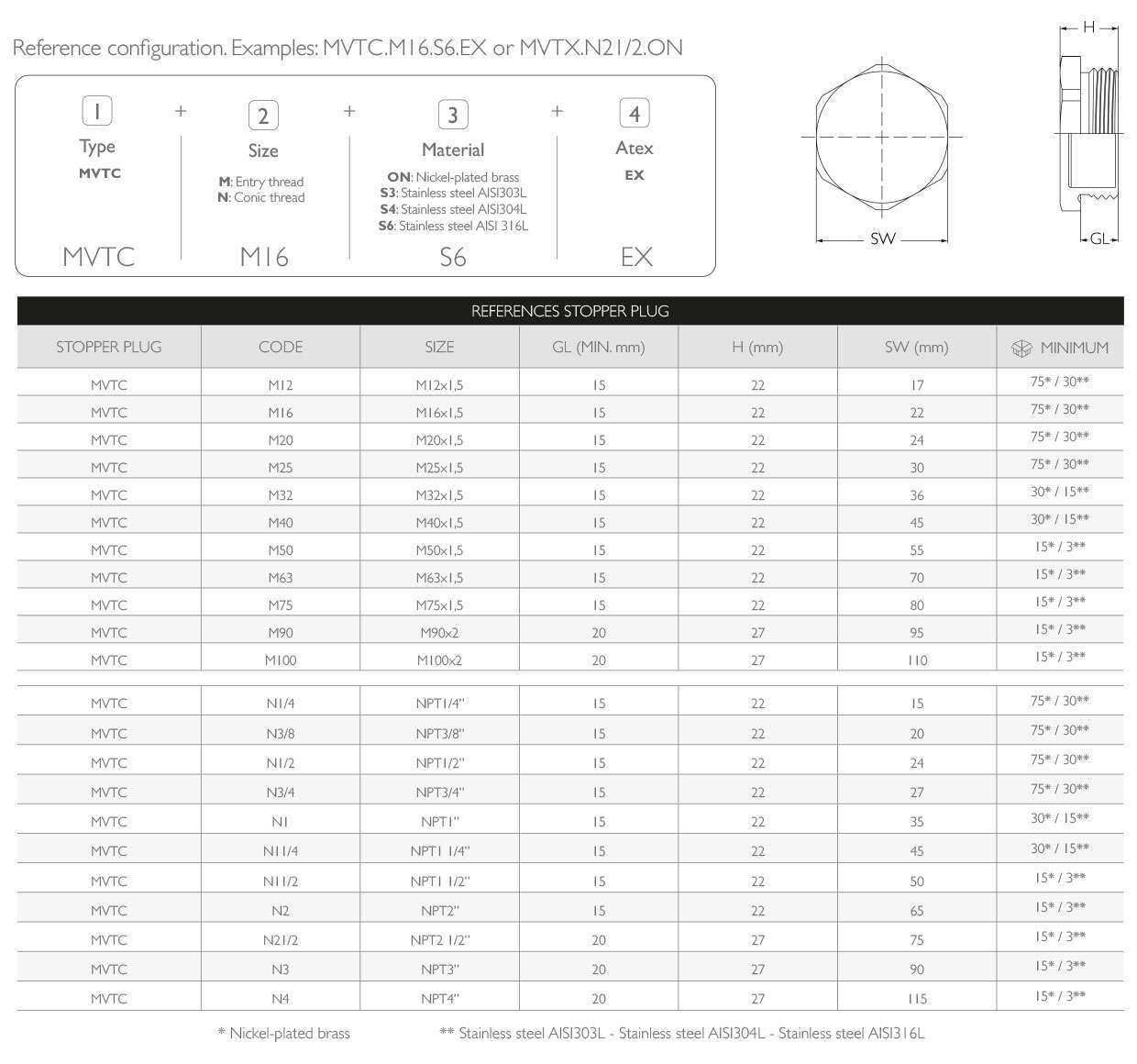

    Sketches
