Cable Glands Atex Unarmoured Ex e IP68

Cable glands unarmoured Ex e nickel plated and stainless steel IP66 - IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, dirt or water.

Order it now and save money!

Cable Glands Atex Unarmoured Ex e IP68 · Atex DelvalleAtex Delvalle
Cable Glands Atex Unarmoured Ex e IP68 · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP68 · Atex Delvalle

Description

Cable glands unarmoured Ex e nickel plated and stainless steel IP66 - IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, dirt or water.

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic

Cable glands unarmoured:

  • EX D
  • EX E

    Regulations

    Normative and marking:

    • IEP 21 ATEX 0967X
    • II 2G Exd/e IIC Gb II 2D Ex tb IIIC Db I M2 Exd/e I Mb
    • EN  60079-0:2009,  60079-1:2007, 60079-31:2009

    Protection class: EN 60529 IP66 / IP68
    Application area:

    • Zones 1, 2, 21 and 22
    • Group Gas IIA, IIB and IIC

    Custom Made Solutions
    We offer multiple solutions

    Cable Glands Atex Unarmoured Ex e IP68 · Atex Delvalle
    Do you need ATEX solutions?
    2021 product catalogues

    Material:

    • Nickel-plated brass
    • Stainless steel AISI303L
    • Stainless steel AISI304L
    • Stainless steel AISI316L

    O-ring: NBR or silicone (optional)

    Thread:

    • Entry
    • Conic

    Cable glands unarmoured:

    • EX D
    • EX E
    Customers also bought:
    Double Compression Cable Glands Armoured Atex Ex d/e IP68 · Atex DelvalleAtex Delvalle
    Double compression cable glands nickel plated and stainless steel Atex Ex d/e IP66 - IP68 made by...
    Cable Glands Atex Unarmoured Ex e IP68 · Atex Delvalle

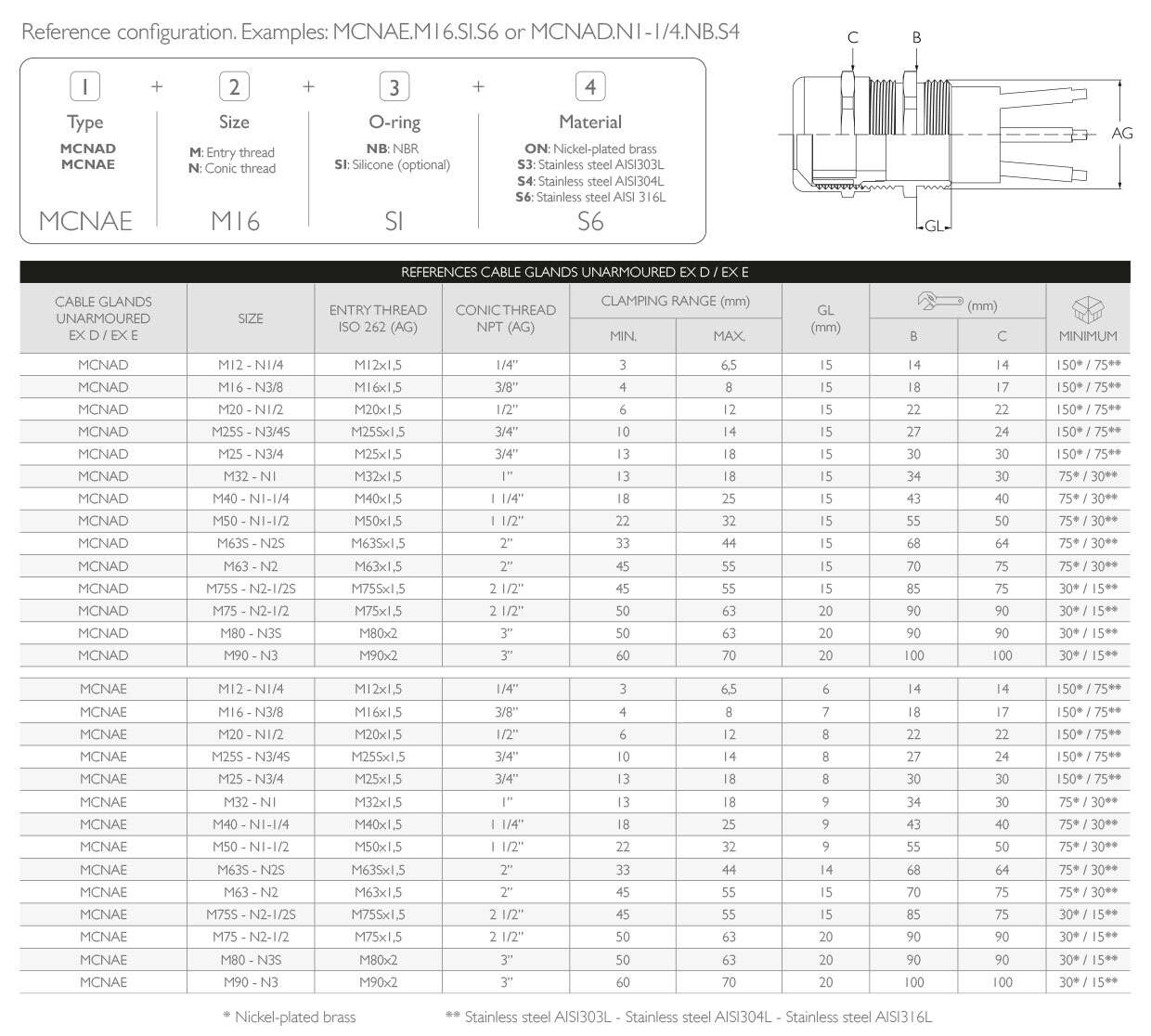

    Sketches
