Hazardous Area Heaters Atex

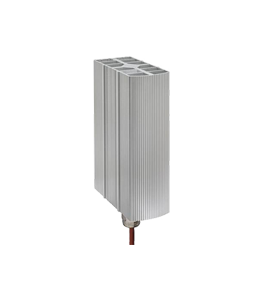

Compact convection heater of temperature class T5 (100°C max.) for the prevention of formation of condensation, temperature fluctuations, and for protection against frost within control and switch cabinets, as well as measuring equipment located in areas with explosion hazard, underground mines or mines susceptible to firedamp.

Hazardous Area Heaters Atex · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle

Description

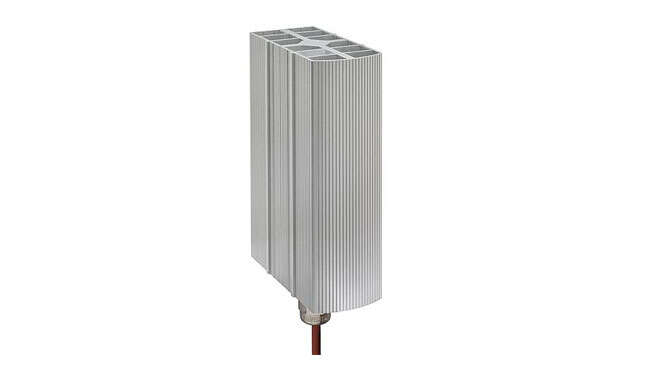

Compact convection heater of temperature class T5 (100°C max.) for the prevention of formation of condensation, temperature fluctuations, and for protection against frost within control and switch cabinets, as well as measuring equipment located in areas with explosion hazard, underground mines or mines susceptible to firedamp.

  • Heating element: high performance cartridge.
  • Heating body: aluminium profile, silver anodised.
  • Connection: silicone cable (halogen-free)         3 x 0.75mm².
  • Conection PE: 0,75 to 2,5mm².
  • Mounting clip for 35 mm DIN rail, EN 60715 for heating body size 120 x 60 mm; screw fixing with 2 plug-on flanges for all heating body sizes, optional widthwise mounting.
  • Fitting position: vertical airflow.
  • Ambient temperature: -60 to +50°C.
  • Surface temperature max.: max. +100°C.
  • Storage temperature: -60 to +85°C.
  • Protection type IP66.
  • Protection: Ex db IIC T5 Gb, I M2 Ex db I Mb and Ex tb IIIC T100°C Db IP66.
  • Approvals Atex, IECEx and EAC.

Discover the advantages

Large convection surface.
Ready-to-use with strain relief.
Maintenance free.
Temperature class T5.

Regulations

  • Ambient temperature: -60 to +50°C.
  • Surface temperature max.: max. +100°C.
  • Storage temperature: -60 to +85°C.
  • Protection type IP66.
  • Protection: Ex db IIC T5 Gb, I M2 Ex db I Mb and Ex tb IIIC T100°C Db IP66.
  • Approvals Atex, IECEx and EAC.

Custom Made Solutions
We offer multiple solutions

Hazardous Area Heaters Atex · Atex Delvalle
Do you need ATEX solutions?
2020 product catalogues
Customers also bought:
Atex Air Conditioners Airatex1 · Atex DelvalleAtex Delvalle
Airatex 1, are compact air conditioners certified Atex & IECEx Zone 1, quick and reliable assembly,...
Atex Air Conditioners Airatex2 · Atex DelvalleAtex Delvalle
Airatex 2, are compact air conditioners certified Atex & IECEx Zone 2, quick and reliable assembly,...
Hazardous Area Heaters Atex · Atex Delvalle

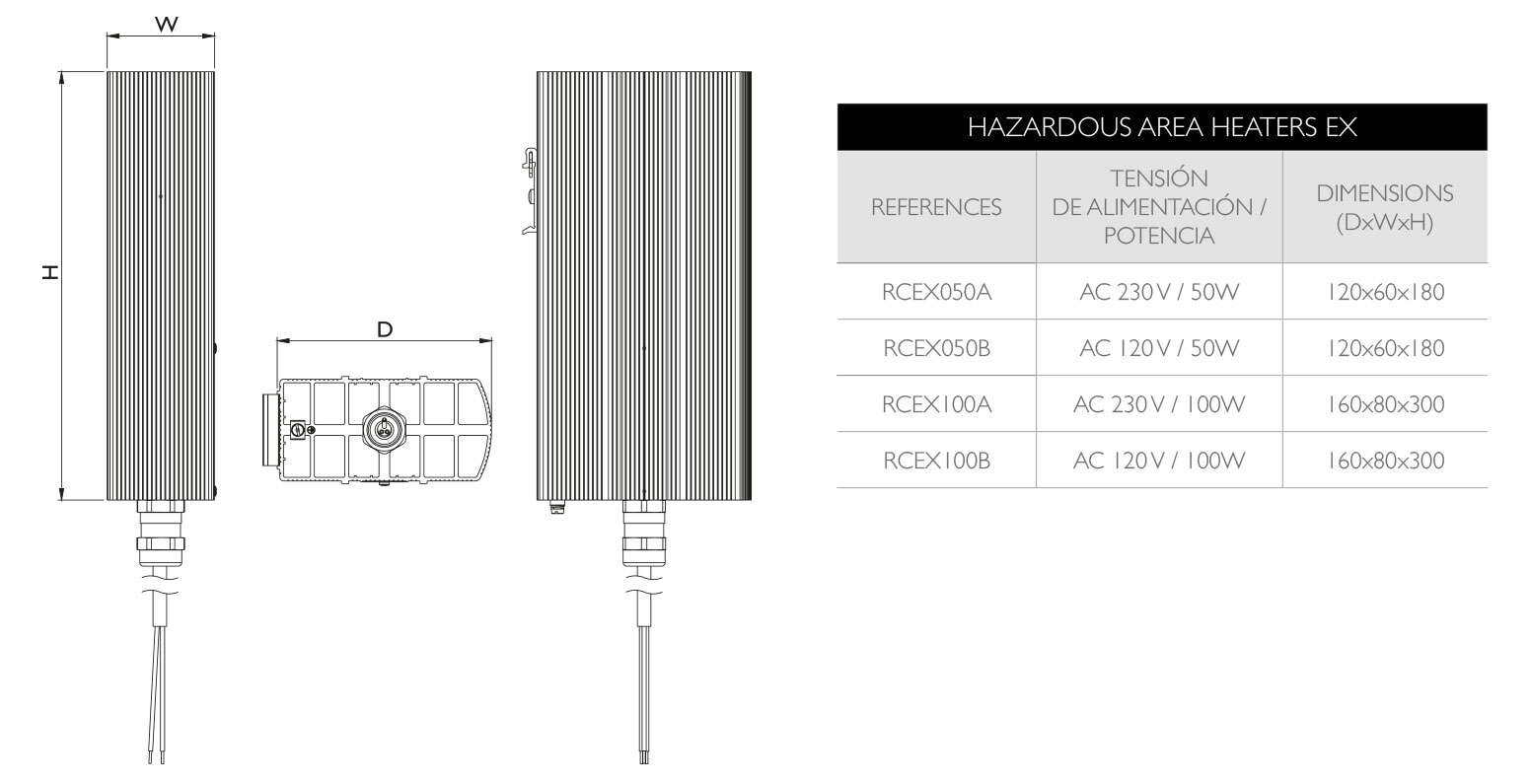

Sketches
