Ex Atex 19" Rack

The increased-safety IP66 stainless steel Ex Rack 19" enclosure Luxorex and Tibex stands out for its robustness and a very spacious interior.

For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants and they are certified to be used at hazardous and Atex zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

The rack 19" made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.

Ex Atex 19Atex Delvalle
Ex Atex 19Atex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo ROHS · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle
  • Logo 10 year anti-corrosion · Atex Delvalle
  • Logo 5 year mechanical parts · Atex Delvalle
  • Logo Chemical resistant · Atex Delvalle
  • Logo Corrosion resistant · Atex Delvalle
  • Logo Scrach resistant · Atex Delvalle
  • Logo Waterproof · Atex Delvalle

Description

The increased-safety, IP66 stainless steel Ex Rack 19" enclosure & cabinet Luxorex stands out for its robustness and a very spacious interior.

For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants

And they are certified to be used at hazardous and Atex zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

the Rack 19" Made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.

Discover the advantages

The increased-safety, IP66 Ex Atex stainless steel rack enclosure  its robustness and a very spacious interior. And they are certified to be used at zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.
Spacious interior that simplifies the connection operations.
Guaranteed corrosion protection.
Safe and resistant in hard and aggresive Ex Atex environments.
Monobloc shape giving perfect sealing and impact resistance.
Pre-assembled body and door.
Allowing insert mass with external connection.
Quarter-turn double-bit locks and stainless stell hinges.
Polyurethane seal on the door -25° to +60°C. Silicone -55ºC +180ºC.
Customer-specific designs also for explosion-hazard zones.
Approved in accordance with directive 94/9/EC.
Long service life +10 years.
Sea water resistant.
High IP66 rating.
Ex approval for distribution boxes available.

Regulations

• II2G Ex e IIC Gb and II2D Ex tb IIIC Db IP66 according to directive 94/9/CE and standar EN 60079-0, EN 60079-7, EN 60079-31.
• IP66 protection according to EN 60529.
• Maximum IK10 resistance, Norm IEC 62262.
• Certificate LOM 14ATEX3026U (Luxorex). Certificate LOM 14ATEX3027U (Tribex)
• Certificate UL Nema 4x, 12, 3r and 1 (on request).  NºFile E342220.
• Polyurethane seal on the door -25° to ≤60°C.
• LDPE hinge, plugs -25° to ≤60°C.

Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Ex Atex 19
Do you need ATEX solutions?
2021 product catalogues

ATEX rack 19" Options:

  • One-Door Single-Access Enclosures (single door on front)
  • One-Door Dual-Access Enclosures (single door on front and rear)
  • Two-Door Single-Access Enclosures (doors close, centerpost)
  • Two-Door Dual-Access Enclosures (doors close, centerpost)
Customers also bought:
Increased Safety Enclosure Luxorex · Atex DelvalleAtex Delvalle
The increased-safety Ex enclosure Luxorex IP66 mural stainless steel hazardous area enclosure...
Large Atex Enclosures · Atex DelvalleAtex Delvalle
Tribex Series is a Large stand Atex enclosures compact and waterproof IP66 made in stainless steel...
Ex Atex 19

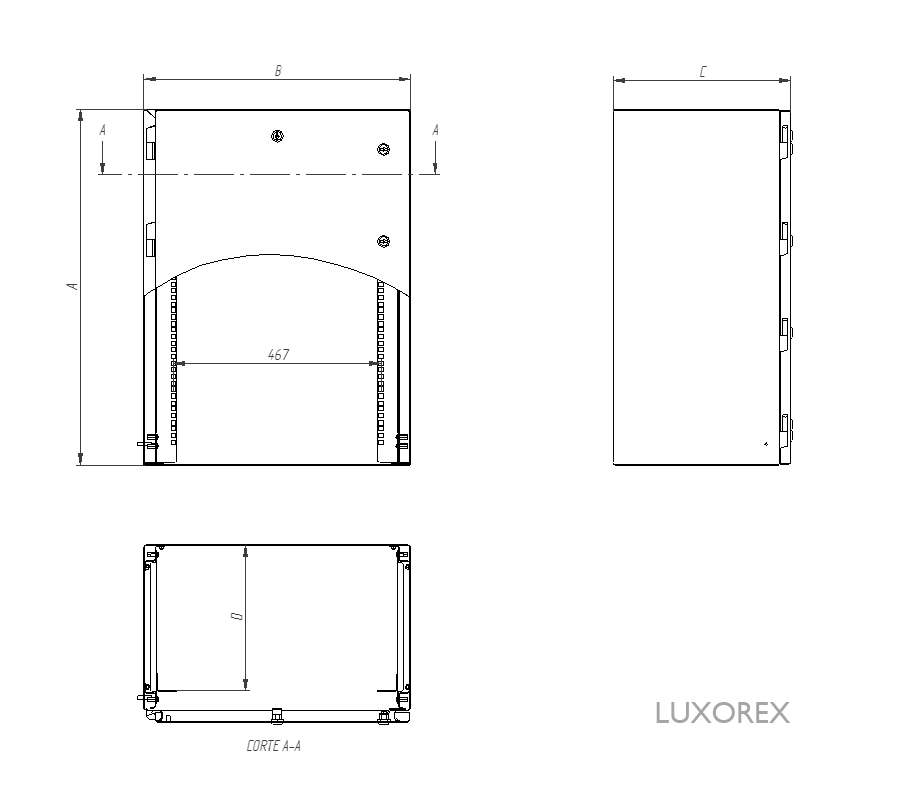

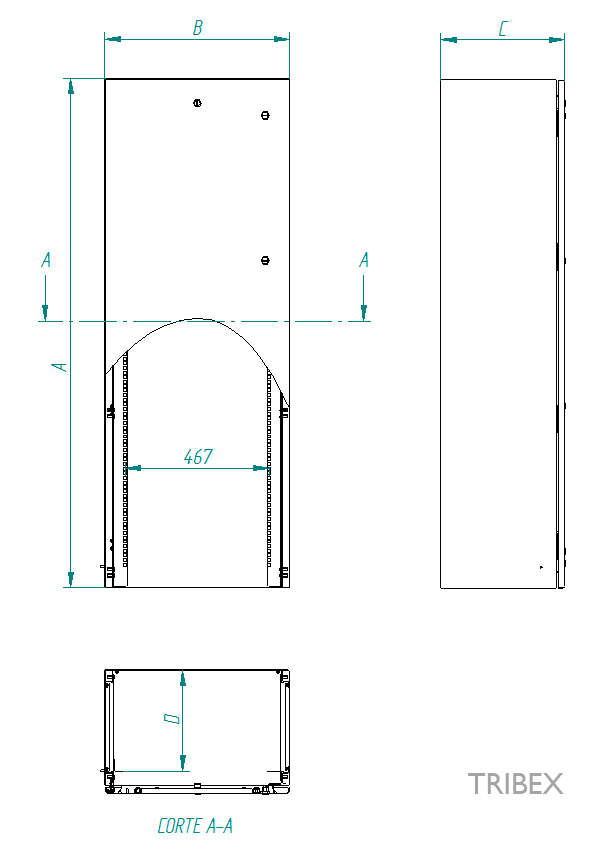

Sketches

Ex Atex 19
Ex Atex 19

References

Show References
ReferenceDescriptionHighWidthBackground
LX506020EXRK10ULuxorex rack 19". 10U500600200LX506020EXRK10U
LX506040EXRK10ULuxorex rack 19". 10U500600400LX506040EXRK10U
LX506060EXRK10ULuxorex rack 19". 10U500600600LX506060EXRK10U
LX506080EXRK10ULuxorex rack 19". 10U500600800LX506080EXRK10U
LX706040EXRK14ULuxorex rack 19". 14U700600400LX706040EXRK14U
LX706060EXRK14ULuxorex rack 19". 14U700600600LX706060EXRK14U
LX706080EXRK14ULuxorex rack 19". 14U700600800LX706080EXRK14U
LX706010EXRK14ULuxorex rack 19". 14U7006001000LX706010EXRK14U
LX806020EXRK16ULuxorex rack 19". 16U800600200LX806020EXRK16U
LX806040EXRK16ULuxorex rack 19". 16U800600400LX806040EXRK16U
LX806060EXRK16ULuxorex rack 19". 16U800600600LX806060EXRK16U
LX806080EXRK16ULuxorex rack 19". 16U800600800LX806080EXRK16U
LX806010EXRK16ULuxorex rack 19". 16U8006001000LX806010EXRK16U
LX106020EXRK22ULuxorex rack 19". 22U1000600200LX106020EXRK22U
LX106040EXRK22ULuxorex rack 19". 22U1000600400LX106040EXRK22U
LX106060EXRK22ULuxorex rack 19". 22U1000600600LX106060EXRK22U
LX106080EXRK22ULuxorex rack 19". 22U1000600800LX106080EXRK22U
LX106010EXRK22ULuxorex rack 19". 22U10006001000LX106010EXRK22U
TB126020EXRK26UTribex rack 19". 26U1200600200TB126020EXRK26U
TB126040EXRK26UTribex rack 19". 26U1200600400TB126040EXRK26U
TB126060EXRK26UTribex rack 19". 26U1200600600TB126060EXRK26U
TB126080EXRK26UTribex rack 19". 26U1200600800TB126080EXRK26U
TB166040EXRK36UTribex rack 19". 36U1650600400TB166040EXRK36U
TB166060EXRK36UTribex rack 19". 36U1650600600TB166060EXRK36U
TB166080EXRK36UTribex rack 19". 36U1650600800TB166080EXRK36U
TB166010EXRK36UTribex rack 19". 36U16506001000TB166010EXRK36U
TB186020EXRK40UTribex rack 19". 40U1800600200TB186020EXRK40U
TB186040EXRK40UTribex rack 19". 40U1800600400TB186040EXRK40U
TB186060EXRK40UTribex rack 19". 40U1800600600TB186060EXRK40U
TB186080EXRK40UTribex rack 19". 40U1800600800TB186080EXRK40U
TB186010EXRK40UTribex rack 19". 40U18006001000TB186010EXRK40U
TB206020EXRK44UTribex rack 19". 44U2000600200TB206020EXRK44U
TB206040EXRK44UTribex rack 19". 44U2000600400TB206040EXRK44U
TB206060EXRK44UTribex rack 19". 44U2000600600TB206060EXRK44U
TB206080EXRK44UTribex rack 19". 44U2000600800TB206080EXRK44U
TB206010EXRK44UTribex rack 19". 44U20006001000TB206010EXRK44U
