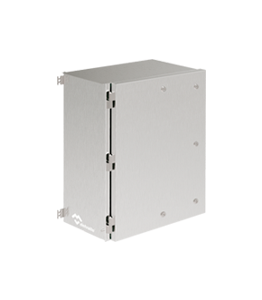

Increased Safety Empty Enclosure
LUXOREX Series

The increased-safety Ex enclosure, IP66 Mural stainless steel hazardous area enclosure Luxorex series stands out for its robustness and a very spacious interior. Certified to be used at zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance...

Increased Safety Empty Enclosure · Atex DelvalleAtex Delvalle
Increased Safety Empty Enclosure · Atex DelvalleAtex Delvalle
Increased Safety Empty Enclosure · Atex DelvalleAtex Delvalle
Increased Safety Empty Enclosure · Atex DelvalleAtex Delvalle
Increased Safety Empty Enclosure · Atex DelvalleAtex Delvalle

Description

The increased-safety, IP66 stainless steel cabinet Luxorex stands out for its robustness and a very spacious interior. And they are certified to be used at zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

  • Made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.
  • For use it in zones 1, 2, 21 and 22, and to place Ex components terminals.
  • Spacious interior that simplifies the connection operations.
  • Guaranteed corrosion protection.
  • Safe and resistant in hard and aggresive Ex Atex environments.
  • Monobloc shape giving perfect sealing and impact resistance.
  • Pre-assembled body and door.
  • Allowing insert mass with external connection.
  • Quarter-turn double-bit locks and stainless stell hinges.

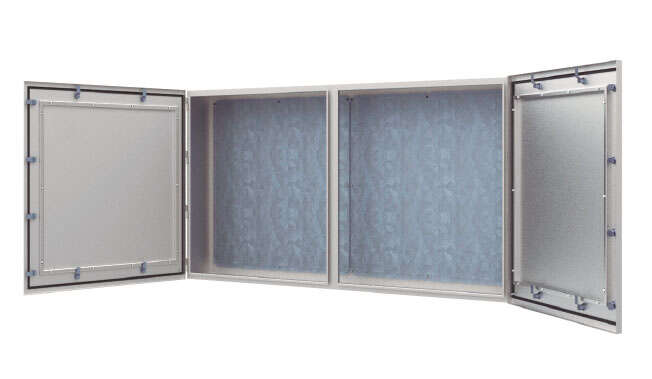

  • Option: Double access (front and rear doors).
  • (x) = 30-40-50-60-70-80-90-10 for a depth 300, 400, 500, 600, 700, 800, 900 or 1000mm

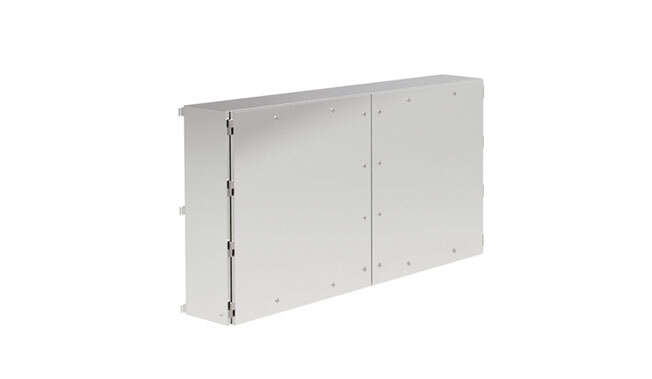

  • Two doors enclosure: * This enclosure includes two mounting plates.



Achieve all the safety and security you need

  • Logo Atex · Atex Delvalle
    Atex
  • Logo CE · Atex Delvalle
    CE
  • Logo IECEX · Atex Delvalle
    IECEX
  • Logo IK10 · Atex Delvalle
    IK10
  • Logo IP66 · Atex Delvalle
    IP66
  • Logo IP6x · Atex Delvalle
    IP6x
  • Logo ROHS · Atex Delvalle
    ROHS
  • Logo UL NEMA 12 · Atex Delvalle
    UL NEMA 12
  • Logo UL NEMA 3R · Atex Delvalle
    UL NEMA 3R
  • Logo UL NEMA 4X · Atex Delvalle
    UL NEMA 4X

Discover the advantages

The increased-safety, IP66 Ex stainless steel enclosure Luxorex series, stands out for its robustness and a very spacious interior. And they are certified to be used at zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

Spacious interior that simplifies the connection operations.

Guaranteed corrosion protection.

Safe and resistant in hard and aggresive Ex Atex environments.

Monobloc shape giving perfect sealing and impact resistance.

Pre-assembled body and door.

Allowing insert mass with external connection.

Quarter-turn double-bit locks and stainless stell hinges.

Polyurethane seal on the door -25° to +60°C.

Customer-specific designs also for non-explosion-hazard zones
Approved in accordance with directive 94/9/EC
Long service life +10 years
Sea water resistant
High IP66 rating
Ex approval for distribution boxes available

Regulations

All products manufactured by Atex Delvalle comply with ATEX and IECEx certification to answer the strictest requirements worldwide. We also comply with the certificates granted by LOM (Spanish Official Laboratory J.M. Madariaga), the only laboratory in Spain which is authorized to confer Atex and Ex certificates. And with UL Standards as well as CE certifications.

  • II2G Ex e IIC Gb and II2D Ex tb IIIC Db IP66 according to directive 94/9/CE and standar EN 60079-0, EN 60079-7, EN 60079-31.
  • IP66 protection according to EN 60529.
  • Maximum IK10 resistance, Norm IEC 62262.
  • Certificate LOM 14ATEX3026U.
  • Certificate UL Nema 4x, 12, 3r and 1 (on request).  NºFile E342220.





Applications

Specially designed for areas where facilities require additional security. And in general, hazardous areas and explosive atmospheres where flameproof equipment are necessary.

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Increased Safety Empty Enclosure · Atex Delvalle
Do you need ATEX solutions?
2017 product catalogues

OPTIONS

Pressurized systems.

Customize this product with the following components:
Ex Air Vent Plug Breather and Drainage Valves IP66 · Atex DelvalleAtex Delvalle
Ex Air Vent Plugs Automatic drainage and breather valves are suitable to be used on increased...
Cable Glands Atex Armoured Ex d/e IP68 · Atex DelvalleAtex Delvalle
Cable glands armoured nickel plated and stainless steel IP66 - IP68 Atex Delvalle are used for...
Increased Safety Empty Enclosure · Atex Delvalle

Sketches

Increased Safety Empty Enclosure · Atex Delvalle
Increased Safety Empty Enclosure · Atex Delvalle
Increased Safety Empty Enclosure · Atex Delvalle

References

Show References
ReferenceDescriptionHighWidthBackground
LX302015EXINCREASED SAFETY ENCLOSURE LUXOREX (1)300200155LX302015EX
LX403020EXINCREASED SAFETY ENCLOSURE LUXOREX (1)400300150LX403020EX
LX504020EXINCREASED SAFETY ENCLOSURE LUXOREX (1)500400200LX504020EX
LX605025EXINCREASED SAFETY ENCLOSURE LUXOREX (1)600500250LX605025EX
LX606030EXINCREASED SAFETY ENCLOSURE LUXOREX (1)600600300LX606030EX
LX705030EXINCREASED SAFETY ENCLOSURE LUXOREX (1)700500300LX705030EX
LX8040(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)800400800LX8040(x)EX
LX8060(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)800600800LX8060(x)EX
LX8080(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)8008001000LX8080(x)EX
LX8010(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)80010001000LX8010(x)EX
LX1040(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)10004001000LX1040(x)EX
LX1060(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)10006001000LX1060(x)EX
LX1080(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)10008001000LX1080(x)EX
LX1010(x)EXINCREASED SAFETY ENCLOSURE LUXOREX (1)100010001000LX1010(x)EX
LX508020DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)500800200LX508020DEX
LX601025DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)6001000250LX601025DEX
LX601230DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)6001200300LX601230DEX
LX701230DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)7001200300LX701230DEX
LX8080(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)800800800LX8080(x)DEX
LX8012(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)8001200800LX8012(x)DEX
LX8016(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)80016001000LX8016(x)DEX
LX8020(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)80020001000LX8020(x)DEX
LX1080(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)10008001000LX1080(x)DEX
LX1012(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)100012001000LX1012(x)DEX
LX1016(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)100016001000LX1016(x)DEX
LX1020(x)DEXINCREASED SAFETY ENCLOSURE LUXOREX (2)100020001000LX1020(x)DEX
