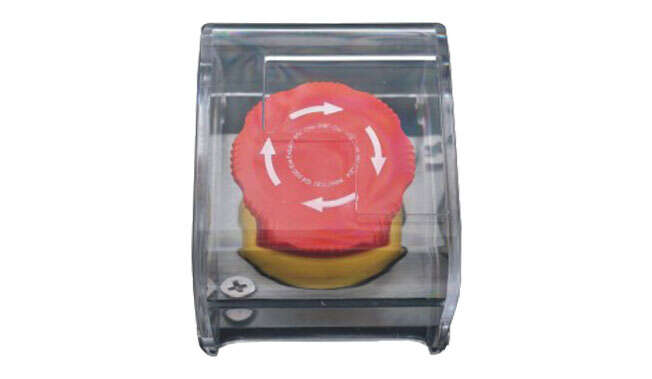

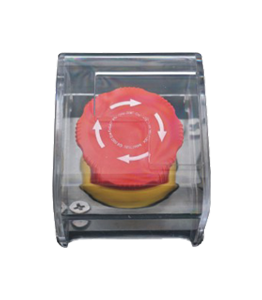

Ex Push-Pulling Button Safety Latch

The Ex push-pulling button safety latches for board front mounting modules are screwed on the lid conform to Atex and IECEx certifications. This is a way to solve the problem of the contact distance between operation head and switch module.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Ex Push-Pulling Button Safety Latch · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

The Ex push-pulling button safety latches for board front mounting modules are screwed on the lid conform to Atex and IECEx certifications. This is a way to solve the problem of the contact distance between operation head and switch module.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Regulations

  • Certificates number:
    • IECEx CML 19.0083U
    • CML 19ATEX3298U
  • Type protection:
    • Ex eb IIC Gb
    • Ex tb IIIC Db
  • Ambient temperature:
    • -55ºC to +65ºC
  • Standard:
    • Directive 2014/34/UE
    • EN IEC 60079-0:2018
    • EN IEC 60079-7:2015+A1:2018
    • EN 60079-31:2014
    • IEC 60079-0:2017
    • IEC 60079-31:2013
    • IEC 60079-7:2017

Applications

Ex control stations
Distribution boxes

Custom Made Solutions
We offer multiple solutions

Ex Push-Pulling Button Safety Latch · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
Customers also bought:
Ex Mushroom Head Button · Atex DelvalleAtex Delvalle
Delvalle Ex mushroom head button conform to Atex and IECEx certifications and they have high degree...
Ex Emergency Push-Pulling Button · Atex DelvalleAtex Delvalle
Delvalle Ex emergency push-pulling button conform to Atex and IECEx certifications and they have...
Ex Twist to Release Button · Atex DelvalleAtex Delvalle
Delvalle Ex twist to realease button conform to Atex and IECEx certifications and they have high...
Ex Emergency Stop Twist to Release Button · Atex DelvalleAtex Delvalle
Delvalle Ex emergency stop twist to release button conform to Atex and IECEx certifications and they...
Ex Key-Releasing Button · Atex DelvalleAtex Delvalle
Delvalle Ex key-releasing button conform to Atex and IECEx certifications and they have high degree...
Ex Emergency Stop Key-Releasing Button · Atex DelvalleAtex Delvalle
Delvalle Ex emergency stop key-releasing button conform to Atex and IECEx certifications and they...
Ex Push-Pulling Button Safety Latch · Atex Delvalle

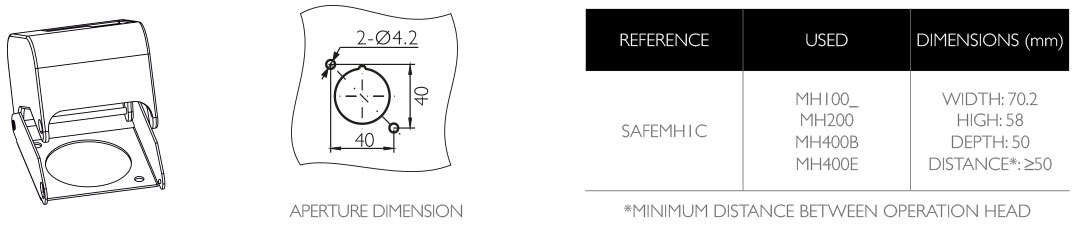

Sketches
