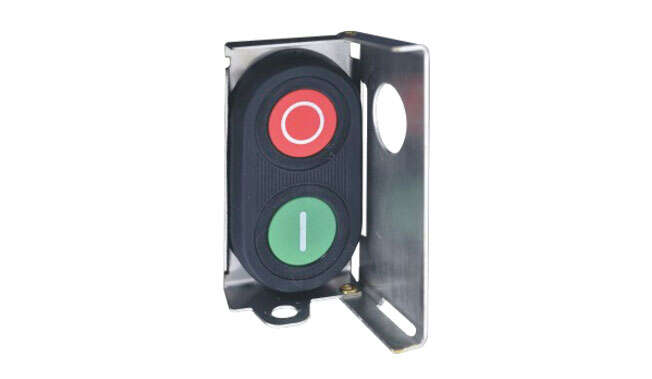

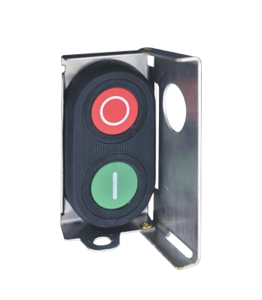

Ex Double Button Safety Latch

The Ex double button safety latches for board front mounting modules are screwed on the lid conform to Atex and IECEx certifications. This is a way to solve the problem of the contact distance between operation head and switch module.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Ex Double Button Safety Latch · Atex Delvalle

This product has the following certificates

Description

The Ex double button safety latches for board front mounting modules are screwed on the lid conform to Atex and IECEx certifications. This is a way to solve the problem of the contact distance between operation head and switch module.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Regulations

Certificates number:
- IECEx CML 19.0083U
- CML 19ATEX3298U
Type protection:
- Ex eb IIC Gb
- Ex tb IIIC Db
Ambient temperature:
- -55ºC to +65ºC

Standard:
- Directive 2014/34/UE
- EN IEC 60079-0:2018
- EN IEC 60079-7:2015+A1:2018
- EN 60079-31:2014
- IEC 60079-0:2017
- IEC 60079-31:2013
- IEC 60079-7:2017

Applications

Ex control stations
Distribution boxes

Custom Made Solutions
We offer multiple solutions
