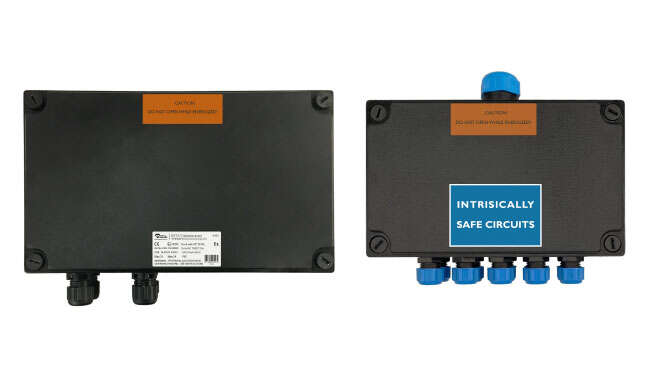

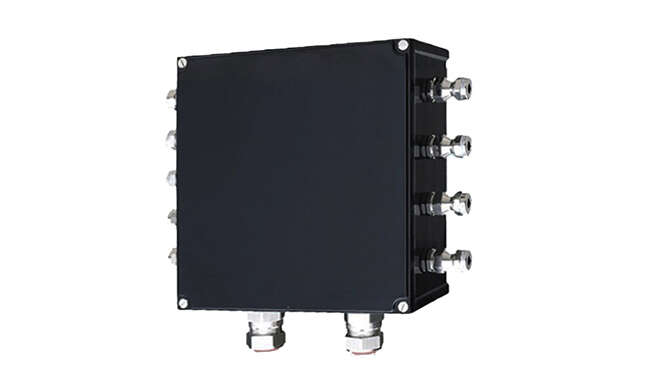

GRP Ex Junction and Terminal Boxes Terbox

TERBOX SERIES

Terbox Series of terminal boxes are made of glass fibre reinforced polyester. All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP65 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22. Cables are made with Atex cable glands, either in polyamide, nickel-plated or stainless steel for corrosive areas.

Order it now and save money!

GRP Ex Junction and Terminal Boxes Terbox · Atex DelvalleAtex Delvalle
GRP Ex Junction and Terminal Boxes Terbox · Atex DelvalleAtex Delvalle
GRP Ex Junction and Terminal Boxes Terbox · Atex DelvalleAtex Delvalle
GRP Ex Junction and Terminal Boxes Terbox · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP65 · Atex Delvalle

Description

Terbox Series of terminal boxes are made of glass fibre reinforced polyester. All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP65 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22.
Cables are made with Atex cable glands, either in polyamide, nickel-plated or stainless steel for corrosive areas.

  • Explosion protection: Zones 1, 2, 21 and 22.
  • Various sizes.
  • Mounting included.
  • Customized and flexible configurations.
  • The enclosures of black terminal boxes are made of glass fibre reinforced polyester.

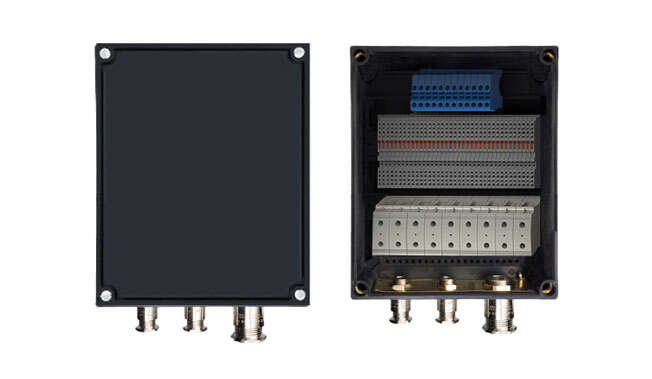

  • Built-in Ex e terminals have specifications for 1.5 - 240mm² and connect and fix the entry leads.
  • The entry may have moulded plastic, nickel-plated or stainless steel cable glands. The unused entries must be sealed with the stopping plugs.
  • lnternational certification IECEx, Atex and TUV.

Regulations

  • Zones 1, 2, 21 and 22
  • Degree of protection IP65
  • Certificates number:
    • IECEx CML 19.0088X
    • CML 19 ATEX 3303X
  • Type protection:
    • II 2GD Ex db eb ib mb llC T5 Gb
    • Ex ib tb lllC T95ºC Db
  • Standard:
    • Directive 2014/34/EU
  • Ambient temperature:
    • -40ºC

Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas
  • Offshore and Marine
  • Industry and process automation
  • Chemical and refinery
  • Pharmaceutical
  • Maritime
  • Fieldstations
  • Food and beverages
  • Print industry
  • Air transport
  • Nuclear and renewable
GRP Ex Junction and Terminal Boxes Terbox · Atex Delvalle

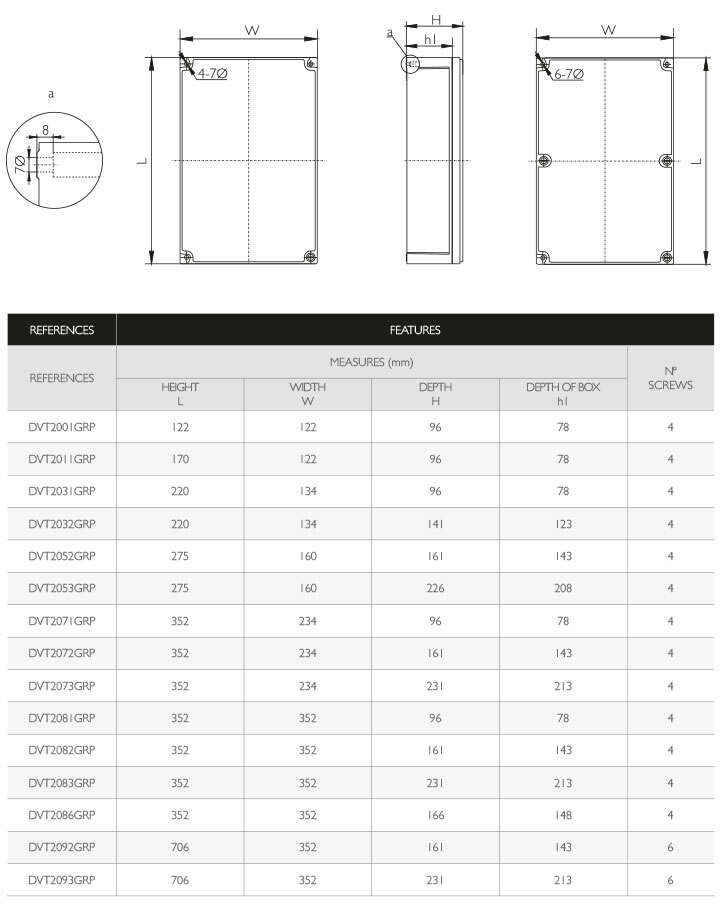

Sketches
