Ex Potentiometer

Delvalle Ex potentiometer conform to Atex and IECEx certifications. Have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Ex Potentiometer · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

Delvalle Ex potentiometer conform to Atex and IECEx certifications. Have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

  • Mounting bracket for board back type or board front mounting rail type.
  • Potentiometer operation head:
    • Zones 1, 2, 21 and 22.
    • Degree of protection: IP66.
    • Certificates number:
    • IECEx CML 19.0083U
    • CML 19ATEX3298U
    • Tighten torque: 2.8 ~ 3.4 Nm (M30x1.5).
    • Potentiometer module:
      • Terminals: 2x2.5mm².
      • Ambient temperature: -55ºC/-40ºC
      • Service temperature: -55ºC/ -40ºC to +90ºC (-55ºC optional).
      • Rated voltage: Max. 200V DC.
      • Rated power: Max. 0.1 W.
      • Scale: 0~100%.
      • Nominal resistance: 100mΩ ~ 2MΩ.
      • Board front rail mounting: on TS35 x 7.5 rail or screw fixation.
      • Board back mounting: on l ~6mm panel.
    Ex Potentiometer · Atex Delvalle

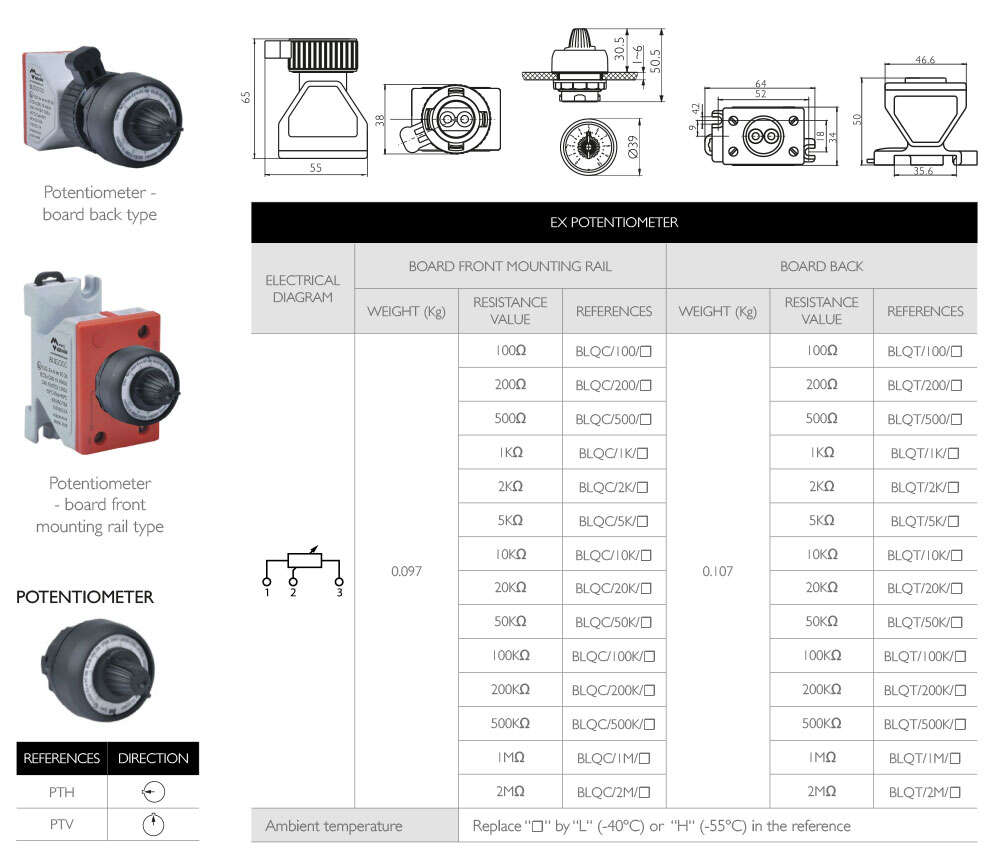

    Sketches

    PLANS AND REFERENCES · Atex Delvalle
