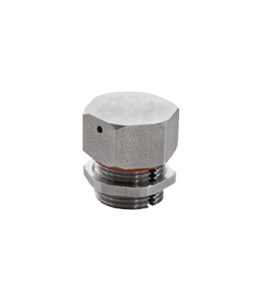

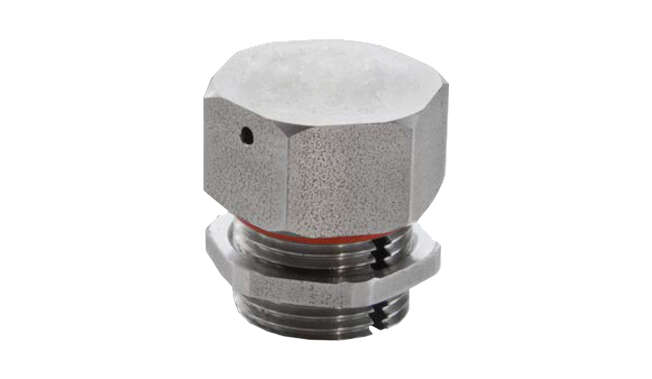

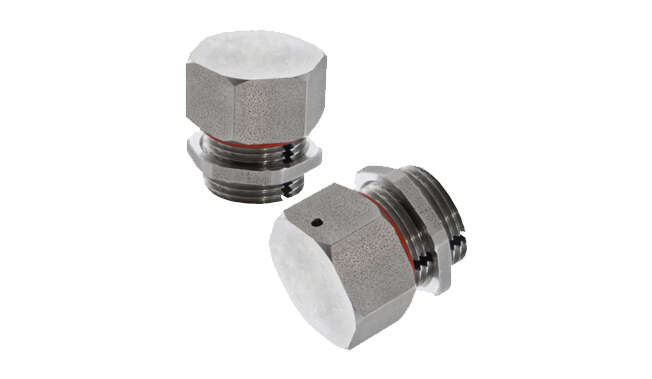

Vanne de Drainage et Anticondensation IP66

SÉRIE VATEX

Automatic drainage and breather valves are suitable to be used on increased safety, intrinsically safety or watertight enclosures to facilitate the elimination of condensation or vapors developed inside. Thanks to a precise mechanism, it is possible to obtain a continuous drainage and breathing of the junction box, protecting it from the possible formations of internal condensation and thus avoiding the periodic manual discharge, while ensuring a suitable IP degree of protection.
We recomended minimun 2 units per enclosure

Vanne de Drainage et Anticondensation IP66 · Atex DelvalleAtex Delvalle
Vanne de Drainage et Anticondensation IP66 · Atex DelvalleAtex Delvalle

Description

Automatic drainage and breather valves are suitable to be used on increased safety, intrinsically safety or watertight enclosures to facilitate the elimination of condensation or vapors developed inside. Thanks to a precise mechanism, it is possible to obtain a continuous drainage and breathing of the junction box, protecting it from the possible formations of internal condensation and thus avoiding the periodic manual discharge, while ensuring a suitable IP degree of protection.
We recomended minimun 2 units per enclosure

Atteignez la sécurité et la garantie dont vous avez besoin

  • Logo Atex · Atex Delvalle
    Atex
  • Logo CE · Atex Delvalle
    CE
  • Logo IECEx · Atex Delvalle
    IECEx
  • Logo IP66 · Atex Delvalle
    IP66
  • Logo 1 an · Atex Delvalle
    1 an
  • Logo Chemical resistant · Atex Delvalle
    Chemical resistant
  • Logo Corrosion resistant · Atex Delvalle
    Corrosion resistant
  • Logo Scrach resistant · Atex Delvalle
    Scrach resistant
  • Logo Waterproof · Atex Delvalle
    Waterproof

Découvrez les avantages

Material: AISI 316 stainless steel o nickel-plated.

Internal filter: stainless steel.

Gaskets: silicone.

Internal seeger: stainless steel

Protection grade: IP66

Temperature: -60ºC + 150ºC

Norme

  • II 2GD Ex eb IIC Gb
  • Ex tb IIIC Db

Directive and normative Atex:

  • Directiva Atex 2014/34/UE
  • EN 60079-14

Normative IECEx:

  • IEC 60079-0: 2011
  • IEC 60079-7:2015
  • IEC 60079-31: 2013

Low voltage directive and regulations:

  • Directiva de 2014/34/UE
  • EN 60079-0: 2012
  • EN 60079-7: 2015
  • EN 60079-31: 2014

Personnalisation sur mesure
Nous vous offrons plusieurs solutions

Vanne de Drainage et Anticondensation IP66 · Atex Delvalle
Avez-vous besoin de solutions ATEX?
Catalogues de produits 2018

How valve Works:
IP66 Waterproof Anti-condensation valve to facilitate air circulation by convection inside the modules, preventing the formation of condensation. Pressure differences in enclosures with a high degree of protection from moisture and dust, are the result of fluctuations in internal and external temperature. If negative pressure or vacuum dust and moisture can be absorbed by the sealed doors and can enter the hazardous area enclosure. Because moisture can not escape, condensation can occur. Allows to regulate the pressure to prevent condensation following an increase in the internal temperature.

Vanne de Drainage et Anticondensation IP66 · Atex Delvalle

Croquis

INSTALLATION · Atex Delvalle

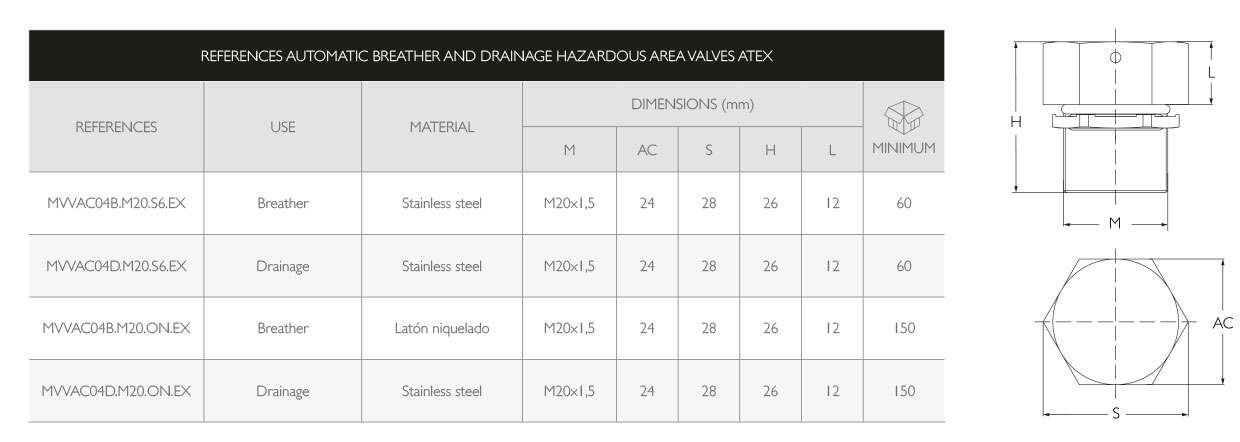

BLUEPRINT AND DIMENSIONS · Atex Delvalle
