Climatisation Atex Airatex2

SÉRIE AIRATEX

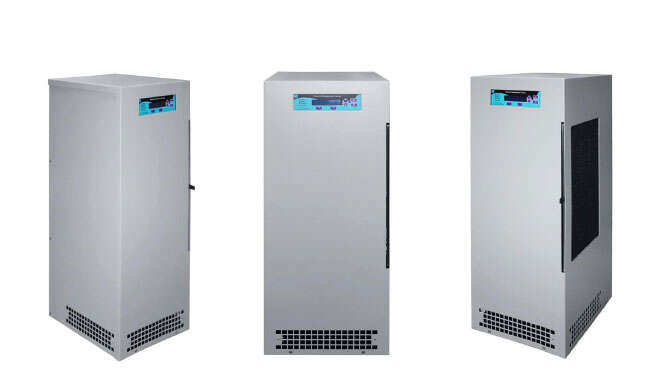

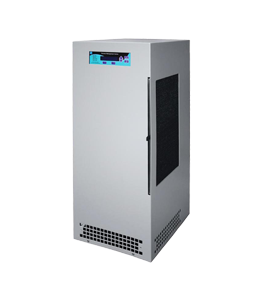

Airatex 2, are compact air conditioners certified Atex & IECEx Zone 2, quick and reliable assembly, with minimal maintenance and optimal design, are used when it is essential to cool electrical panels in Atex and hazardous areas. Available in 4000, 5000, 6000, 8000, 10000 and 12000 BTUH models.

Climatisation Atex Airatex2 · Atex DelvalleAtex Delvalle
Climatisation Atex Airatex2 · Atex DelvalleAtex Delvalle

Description

Airatex 2, are compact air conditioners certified Atex & IECEx Zone 2, quick and reliable assembly, with minimal maintenance and optimal design, are used when it is essential to cool electrical panels in Atex and hazardous areas. Available in 4000, 5000, 6000, 8000, 10000 and 12000 BTUH models.

  • Compact size (726 x 287mm).
  • Warm enclosure air is drawn in near the top of the unit, while conditioned air is discharged near the bottom.
  • Three position condenser air flow with the option to direct hot discharge air in different directions.
  • Standard Digital Controller with programmable temperatures and alarm.
  • Controller can be installed on either front or rear of the unit (inside or outside of enclosure).
  • Can be used with or without purge system.
  • ATEX / IECEx / UL Certified.
  • Outdoor model operating temperature range from -40°C to +60°C.
  • Environment friendly refrigerant.
  • Efficient, quiet, and long lasting rotary compressor.
  • Powder coat finish on durable 16 gauge welded steel.
  • Easy pull out cleanable, reusable electrostatic 10 micron filter.
  • Minimal visible fasteners.
  • IP66.

Atteignez la sécurité et la garantie dont vous avez besoin

  • Logo Atex · Atex Delvalle
    Atex
  • Logo IECEx · Atex Delvalle
    IECEx
  • Logo IP66 · Atex Delvalle
    IP66

Personnalisation sur mesure
Nous vous offrons plusieurs solutions

Climatisation Atex Airatex2 · Atex Delvalle
Avez-vous besoin de solutions ATEX?
Catalogues de produits 2018
  • Custom finishes.

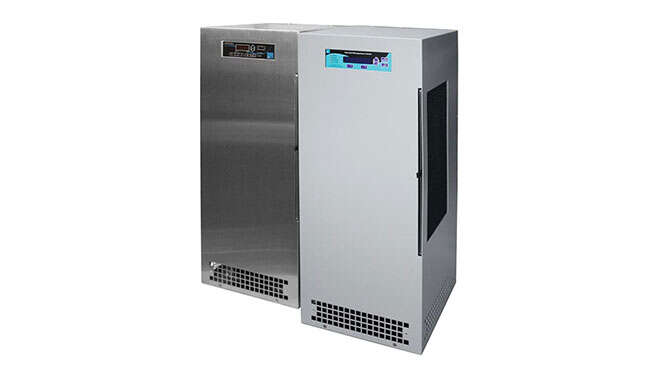

  • 304 or 316 stainless steel.
  • Low ambient (LA).
  • Alarm output (XO3).
  • 4 Micron condenser filter.
  • Total corrosive e-coating (CP3).
  • 120V 60Hz.
  • 220 / 230V 50 / 60Hz.
  • 400V 50 / 60Hz.
  • 480V 50 / 60Hz.
  • Three position condenser air flow with the option to direct hot discharge air in different directions.
  • Built in purge fitting (this 1/4”[6.35MM] OD push to connect fitting is for convenience only and is not required as a protection method. All components are non-ignition source components and do not require purge protection from any source).
Climatisation Atex Airatex2 · Atex Delvalle

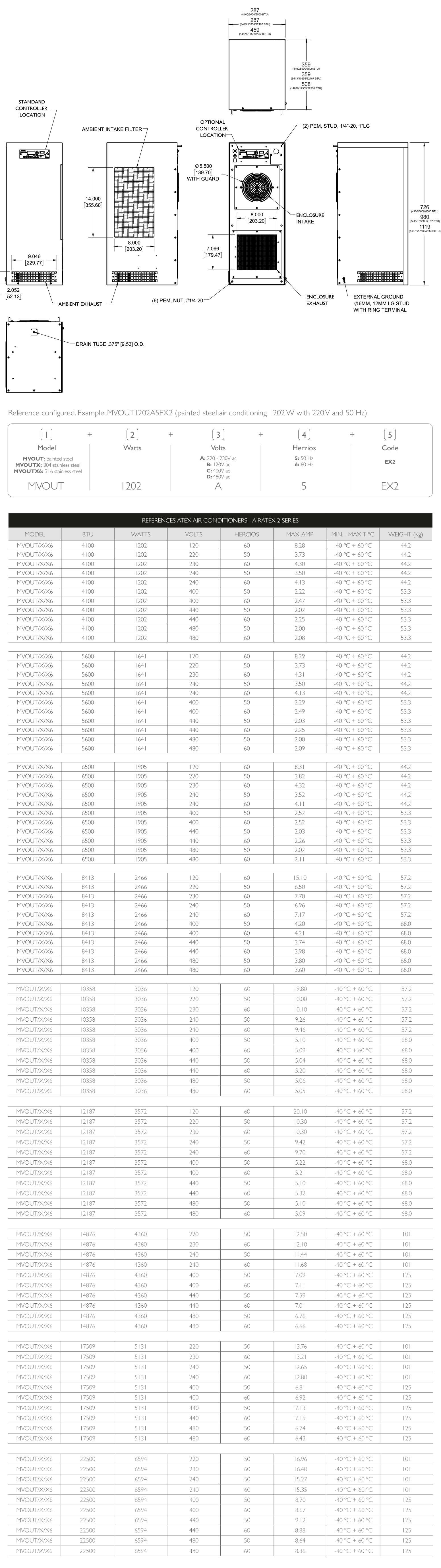

Croquis
