Réfrigérateur Atex Vortex

SÉRIE VORTEX

Hazardous location air conditioners ATEX & IECEx AIRATEX. Explosion-Proof Electrical Equipment for use in Hazardous (classified) Locations Zone 1 & 2 and designed for purged and non-purged enclosure systems, also Class I, Division 2, Groups B, C, and D fo

Réfrigérateur Atex Vortex · Atex DelvalleAtex Delvalle
Réfrigérateur Atex Vortex · Atex DelvalleAtex Delvalle

Description

The most economical Atex system to cool electrical panels Atex & IECEx.
Vortex Enclosure Coolers are designed specifically for purged electrical enclosures in Atex Zones 2 and 22, and Temperature Class T4 areas.
The Atex Vortex incorporates the most up-to-date features into Vortex’s line of highly reliable, cost effective enclosure coolers.

Atteignez la sécurité et la garantie dont vous avez besoin

  • Logo Atex · Atex Delvalle
    Atex
  • Logo IECEx · Atex Delvalle
    IECEx

Découvrez les avantages

Can be mounted on top or side of enclosure.
Small it fits on all enclosures.
Thermostatically controlled via mechanical thermostat.
Requires no wiring, can be installed (easily) in minutes.
No ambient, dirty, or humid air enters the enclosure.
Designed to cool environments quietly.
Significantly lower cost, compared to Atex Certified air conditioners.
Contains no moving parts, resulting in very little required maintenance.
Reduced energy use.
5 minute installation.
Reduced noise levels.
62 dBA operation, 78% quieter than typical vortex coolers.

Norme

  • Pneumatic parameters
    - Protective gas supply: Instrument grade air.
    - Pressure requirement: 2....6,9 bar regulated.
  • Ambient conditions
    - Ambient temperature: -20°C to 40°C.
    - Maintaining the temperature between: 26°C (80°F) and 35°C (95°F) through mechanical
    thermostat.
    - Inlet air max temperature: 49ºC.
  • Mechanical specifications
    - Connection type: Pneumatic: 3/8” NPT (female).
    - Protection degree: IP66.
  • Data for applications in Connection with
    Ex-areas

    - EC type examination certificate EC:: EX II 3 GD T4.
    - ATEX certified for: Zones 2 and 22.
    - Temperature classification: T4 Class.
  • Directive conformity
    - Directive 94/9/EC: EN13463-1:2009.
  • Internal approvals
    - UL approval
    - cULus.
    - Class I, Division  2, groups A, B, C and D.
    - Class II, Division 2, groups F and G; Clase III.
Réfrigérateur Atex Vortex · Atex Delvalle

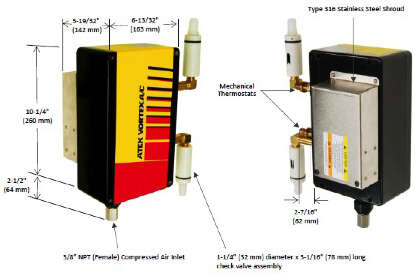

Croquis

Réfrigérateur Atex Vortex · Atex Delvalle

Références

Montrer Références
RéférenceDescriptionHauteurLargeurProfondeur
VORT900EXFRefrigerador atex VORTEX 900 BTE/hr 264W Inluye filtro. Termostato mecánicoVORT900EXF
VORT900EXRefrigerador atex VORTEX 900 BTE/hr 264W Inluye filtro. Termostato mecánicoVORT900EX
VORT1500EXFRefrigerador atex VORTEX 1500 BTE/hr 264W Inluye filtro. Termostato mecánicoVORT1500EXF
VORT1500EXRefrigerador atex VORTEX 1500 BTE/hr 264W Inluye filtro. Termostato mecánicoVORT1500EX
VORT2500EXFRefrigerador atex VORTEX 2500 BTE/hr 733W Inluye filtro. Termostato mecánicoVORT2500EXF
VORT2500EXAtex refrigerator VORTEX 2500 BTE/hr 733W It not includes filter. Mechanical thermostatVORT2500EX
VORT5000EXFAtex refrigerator VORTEX 5000 BTE/hr 1465W It includes filter. Mechanical thermostatVORT5000EXF
VORT5000EXAtex refrigerator VORTEX 5000 BTE/hr 1465W It not includes filter. Mechanical thermostatVORT5000EX
