Ex Inverter Motor Starters Atex and IECEx

MOTREX SERIES

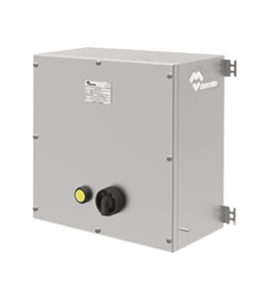

The inverter motor starter Atex and IECEx has been designed to inverter the turn of motor with guarantee and protection in high explosion risk zone.
It’s used to control the electric motor switching, with two turns and switching off, besides to protect it against overloads thanks to the thermal relay.

Ex Inverter Motor Starters Atex and IECEx · Atex DelvalleAtex Delvalle
Ex Inverter Motor Starters Atex and IECEx · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

The inverter motor starter Atex & IECEx has been designed to inverter the turn of motor with guarantee and protection in high explosion risk zone.
It’s used to control the electric motor switching, with two turns and switching off, besides to protect it against overloads thanks to the thermal relay.
This is achieved with two phase contactors and a thermal relay to protect the starting power peak.

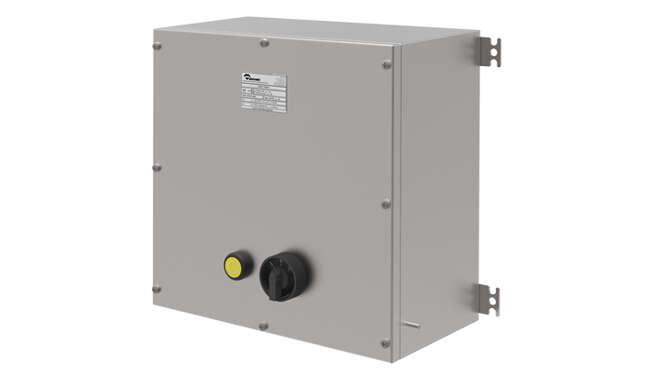

The Ex motor starter components, are protected inside of an Atex & IECEx enclosure, IP66 made with stainless steel 304L.
This enclosure has a specific design, being antirust, waterproof and with IP66 protection. It has a protection “Ex e” and “Ex d”, being possible to use it in zones with high explosion risk outdoor and rust.

The rated voltage is 690V and the rated current is from 12A to 38A.
The power for which the Ex motor starter has been designed is between 4 and 18.5 kW.
It can work between two temperature ranges, which give it a higher use capacity.

  • -20°C≤ Ta ≤60°C
  • -20°C≤ Ta ≤40°C

Regarding the enclosure Atex & IECEx :

  • The joint between the cover and body, is designed to secure a really high degree protection IP66.
  • It has a “Ex e” protection, to use it in zones 1, 2, 21 and 22 with explosive atmospheres with dust and gas.
  • It includes three cable glands in nickel plated brass with “Ex e” in M25.

Discover the advantages

Selecting of the motor turn with safely.
This Ex motor starter allows a faster switching on after a thermal relay’s trip.
It will have a longer use thanks to thermal relay, which avoids sudden motor stops and therefore machine stops.
It’s possible to get the coil with low voltages, controlling high capacity motors with a low tension circuit.
There are so much voltage and current possibilities to choose the Ex motor starter. 12A to 38A.
It can be manufactured with AISI 316L for marine atmospheres.
Great versatility and possibilities.

Regulations

Atex directive and regulations:

  • Directive Atex 2014/34/EU
  • EN 60079-0:2012
  • EN 60079-1:2007
  • EN 60079-7:2015
  • EN 60079-31:2010

IECEx regulations:

  • IEC 60079-0:2011
  • IEC 60079-1:2006
  • IEC 60079-7:2015
  • IEC 60079-31:2013

Enclosure regulation:

  • Norme IP IEC 60529
  • Norme IK IEC 62262

Low voltage directive and regulation:

  • Directive 2014/35/UE
  • EN 61439-12011
  • EN 61439-22011

This equipment is certificated for use it in potentially explosive atmospheres in 1, 2, 21 and 22 zones and it has a protection “Ex e” and “Ex d”.
Atex mark:

  • II2G Ex d e IIC T6/T5 Gb
  • II2D Ex tb IIIC T85°C /T100°C Db
  • Certificate number: LOM14Atex2082

IECEx mark:

  • Ex d e IIC T6/T5 Gb
  • Ex tb IIIC T85°C/T100°C Db
  • Certificate number: EX/LOM/IECEx

Custom Made Solutions
We offer multiple solutions

Ex Inverter Motor Starters Atex and IECEx · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
  • The rated current of AC contactor can be chosen between: 12, 25 and 38A.
  • The coil service voltage is between: 24, 36, 48, 110, 220-230 and 380-400V.
  • The setting range of thermo relay is really large: 7-10, 9-13, 12-18, 16-24, 23-32 y 30-38A.
  • The enclosure can be manufactured with stainless steel AISI 316L to marines or highly corrosive places.
  • Cable glands available in any size and thread and they can be with stainless steel.
  • Possibility of different configurations, with indicator lights, emergency mushroom.
Ex Inverter Motor Starters Atex and IECEx · Atex Delvalle

Sketches

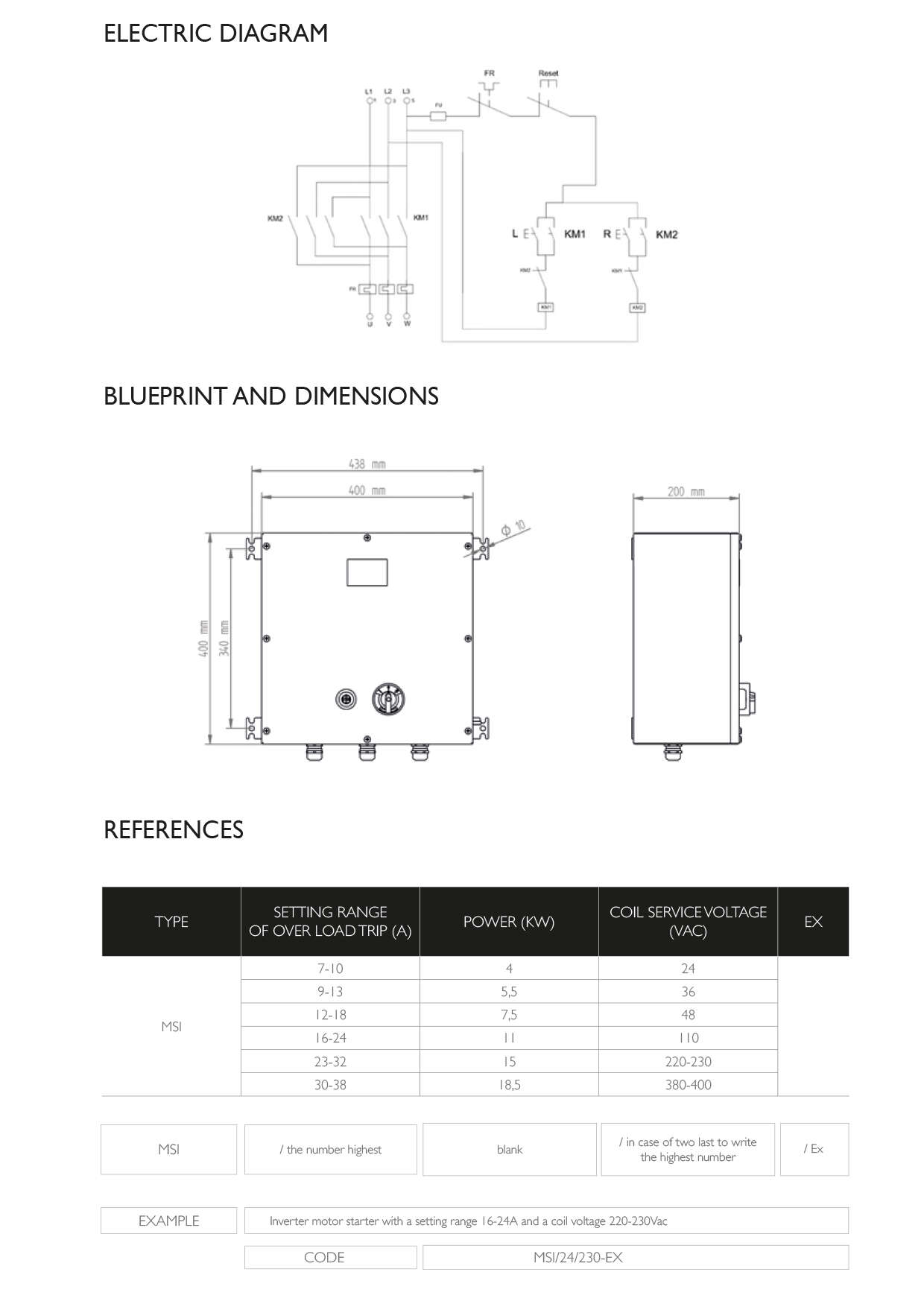

BLUEPRINT AND DIMENSIONS · Atex Delvalle
