Atex HMI

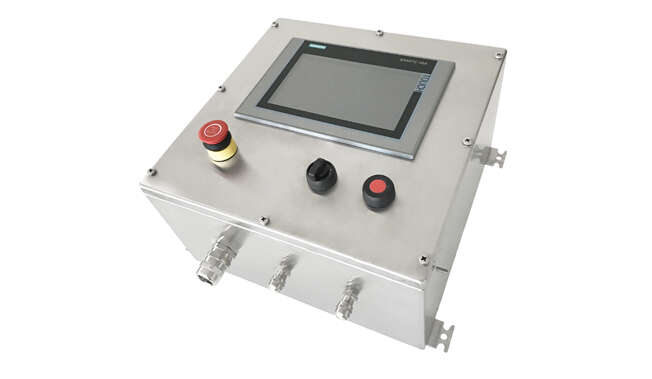

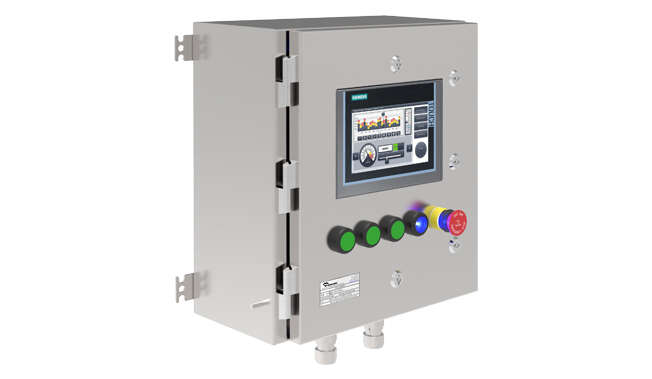

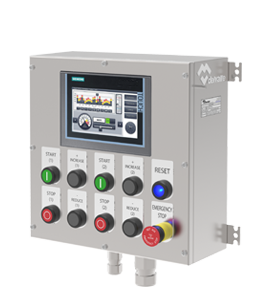

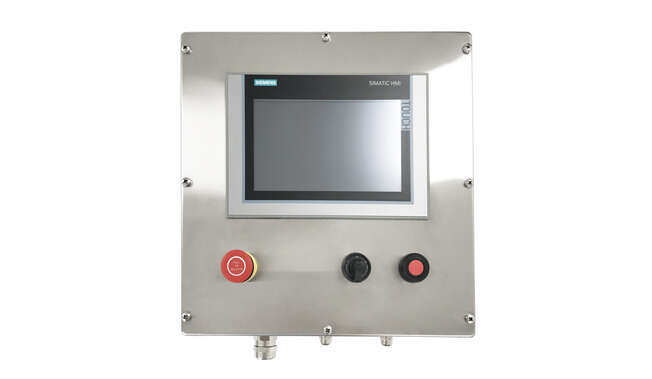

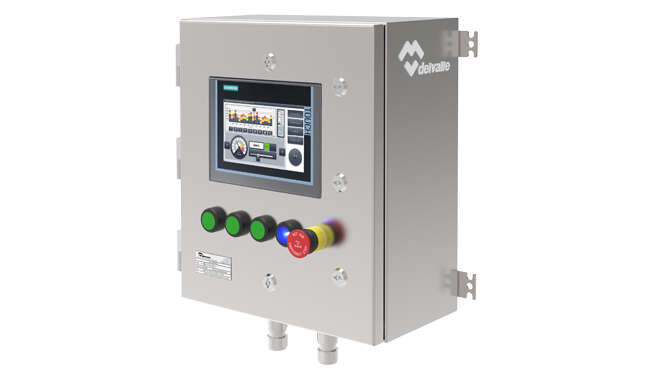

Atex HMI is a Zone 2 & 22 operator workstation. Every HMI has been engineered to endure the harsh & hazardous environment of the plant floor, full certified Atex & IECEx.

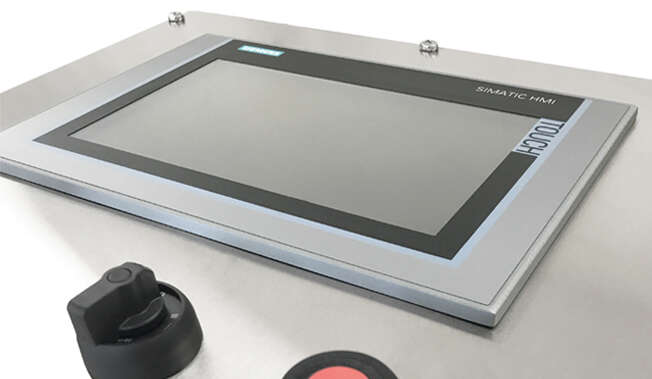

with touchscreen by Siemens. Has three sizes 7", 9" and 12" Siemens display the HMI can handle standard visualization tasks as well as more demanding applications.

A virtually indestructible display for monitoring and control, it’s suitable for the rig floor or anywhere an extremely rugged panel HMI is required.

High-bright, LED backlit LCD panel provides high performance with a glove-friendly touchscreen.

This product has the following certificates

Description

Atex monitor HMI are an extension of control room connectivity out in the field. Every HMI workstation has been engineered to endure the harsh & hazardous environment of the plant floor, full certified Atex & IECEx.
Access in the field saves time and prevents process upsets. The leveraging of desktop PCs for automation control is very common.

HMI is a completely enclosed HMI that outperforms the abysmal conditions aboard open sea and land drilling rigs. A virtually indestructible display for monitoring and control, it’s suitable for the rig floor or anywhere an extremely rugged panel PC is required. PC operator workstations HMI is a Zone 2 & 22 operator workstation.
Its 7” high-bright, LED backlit LCD panel provides high performance with a glove-friendly touchscreen.
Rugged HMIs have replaced many hydraulic gauges, recorders, and counters used for drilling wells. Visualization provides greater detail compared to hydraulic gauges.It’s been instrumental in improving the efficiency of the drilling operation and in proliferating drill-by-wire.

Technical features:

Portable and field maintainable.
Passive liquid cooling dissipates heat without a cooling fan.
Optically bonded LCD offers clear resolution under any light conditions.
System prevents data loss in power failure
High operating temp.
Has three sizes 7", 9" and 12" screen high resolution and high contrast with screen quality of 16 million colors.
Sunlight readable display.

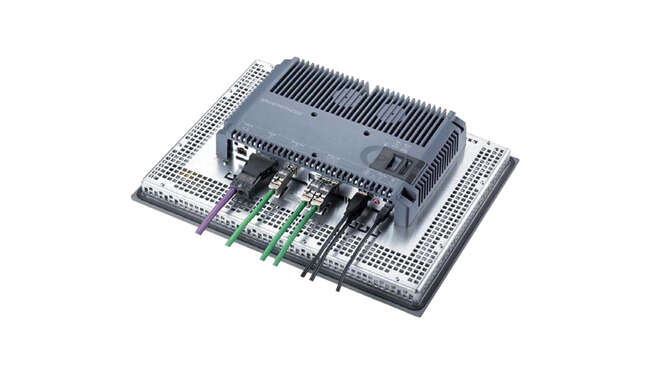

Transfer data using cable standard (Cable Ethernet standard, cable USB standard).
Communication options: PROFIBUS and PORFINE.
Can be adapted flexibly to each individual task and can be integrated in an existing infrastructure.
Rugged and completely maintenance-free for use directly at the machine, even outdoor and in shipbuilding.

Download all documents and certificates

Product

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Complex processes can be displayed in much greater detail and laid out more clearly on larger monitors.
Affordable electronics.
Better processing speed for high-end graphics desired by machine builders.
Siemens based open software systems offer the greatest flexibility and integration while improving learning curves.
We offer dual rated operator workstations for Class I, Div. 2, and Zone 2,22 (ATEX).
The Atex & IECEx HMI workstations are optimized to perform under harsh and difficult conditions with wide temperature ranges, shock and vibration resistance, and overall ruggedization to stand up to the grimy, wet conditions commonly found in oil and gas, food processing, or chemical facilities.

Regulations

Marking:

II 3G Ex nA nC IIC T4 Gc
II 3D Ex tc IIIC T135ºC Dc IP65

Certificate:

Delvalle 16ATEX0700
Certificate LOM 14ATEX3028U
Certificate LOM 14ATEX3026U

Normative:

Directive 2014/34/UE
EN 60079-0:2012
EN60079-15:2013

Normative, certificates:

Marked CE: Yes
Culus: Yes
RCM (previus C-TICK): Yes
Homologation KC: Yes
Naval certifications
- Germanischer Lloyd (GL): Yes
- American Bureau of Shipping (ABS): Yes
- Bureau Veritas (BV): Yes
- Det Norske Veritas (DNV): Yes
- Lloyds Register of Shipping (LRS): Yes
- Nippon Kaiji Kyokai (Class NK): Yes
Use in potentially explosive atmospheres>
- ATEX zone 2: Yes
- ATEX zone 22: Yes
- IECEx zone 2: Yes
- IECEx zone 22: Yes
- Culus Class I zone 2, division 2: Yes
- FM Class I Division 2: Yes
