Atex Junction Box Geoex

GEOEX SERIES

The Ex Junction Box Geoex Series has been developed for installations in hazardous areas 1, 2, 21 and 22, for installation of signal and power distribution networks in explosion hazardous areas, various types of terminal boxes and junction boxes are available.
They are certified according to the latest Atex and other international standards, types of explosion protection include Ex e, Ex ia, and Ex tb.

We Custom made Ex Junction boxes in AISI 304L or 316L Stainless Steel, they prove our commitment for functionality, design and sealing in our range of Ex terminals.All types are robust, durable, and highly heat resistant.
Distinctive construction features facilitate installation and maintenance.

Atex Junction Box Geoex · Atex DelvalleAtex Delvalle
Atex Junction Box Geoex · Atex DelvalleAtex Delvalle
Atex Junction Box Geoex · Atex DelvalleAtex Delvalle
Atex Junction Box Geoex · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP6x · Atex Delvalle
  • Logo ROHS · Atex Delvalle
  • Logo UL NEMA 1 · Atex Delvalle
  • Logo UL NEMA 12 · Atex Delvalle
  • Logo UL NEMA 3R · Atex Delvalle
  • Logo UL NEMA 4 · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle

Description

The increased-safety IP66 Geoex junction box is made in either AISI 304L or AISI 316L stainless steel.  Certified to be used at zones 1, 2, 21 and 22, it is greatly valued for its high security and resistance in the harshest environment.

  • Made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.
  • For use it in zones 1, 2, 21 and 22 and to place Ex components terminals.
  • Spacious interior that simplifies the connection operations.
  • Guaranteed corrosion protection.
  • Safe and resistant in hard and aggresive Ex Atex environments.
  • Monobloc shape giving perfect sealing and impact resistance.
  • Pre-assembled body and door.
  • Allowing insert mass with external connection.
  • Stainless steel AISI 316 screws.



Discover the advantages

The increased-safety, IP66 Geoex Junction Box is made in either AISI 304L or AISI 316L stainless steel.

Certified to be used at zones 1, 2, 21 and 22, it is greatly valued for its high security and resistance in the harshest environment.

Spacious interior that simplifies the connection operations.

Guaranteed corrosion protection.

Safe and resistant in hard and aggresive Ex Atex environments.

Monobloc shape giving perfect sealing and impact resistance.

Pre-assembled body and door.

Allowing insert mass with external connection.

Regulations

All products manufactured by Atex Delvalle comply with ATEX and IECEx certification to answer the strictest requirements worldwide. We also comply with the certificates granted by LOM (Spanish Official Laboratory J.M. Madariaga), the only laboratory in Spain which is authorized to confer Atex and Ex certificates. And with UL Standards as well as CE certifications.

  • II2G Ex eb IIC Gb and II2D Ex tb IIIC Db IP66 according to directive 94/9/CE and standard EN 60079-0, EN 60079-7,      EN 60079-31.
  • Certificate LOM 14ATEX3028U.
  • IP66 protection according to EN 60529.
  • Maximum IK10 resistance, Norm IEC 62262.
  • Certificate UL Nema 4x, 12, 3r and 1 (on request).  Nº File E342220.
  • Polyurethane gasket: -25ºC
  • Silicone sponge gasket: -45ºC
  • Silicone foam gasket: -45ºC
  • LDPE hinge, plugs -25° to ≤60°C.



Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Atex Junction Box Geoex · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues
  • Available up to IP67 or IP68.
  • Double access (both front and
  • rear doors).
  • Wall mounting brackets.
  • Option painted galvanized steel finish.
Customers also bought:
Cable Glands Atex Increased Security IP68 · Atex DelvalleAtex Delvalle
Cable glands Atex thread metric increased security IP66 - IP68 made by Atex Delvalle are used for...
Ex Air Vent Plug Breather and Drainage Valves IP66 · Atex DelvalleAtex Delvalle
Ex Air Vent Plugs Automatic drainage and breather valves are suitable to be used on increased...
Atex Thermoelectric Cooler IP67 · Atex DelvalleAtex Delvalle
The Atex cabinet cooler IP67 is a thermoelectric cooler for applications in potentially explosive...
Atex Junction Box Geoex · Atex Delvalle

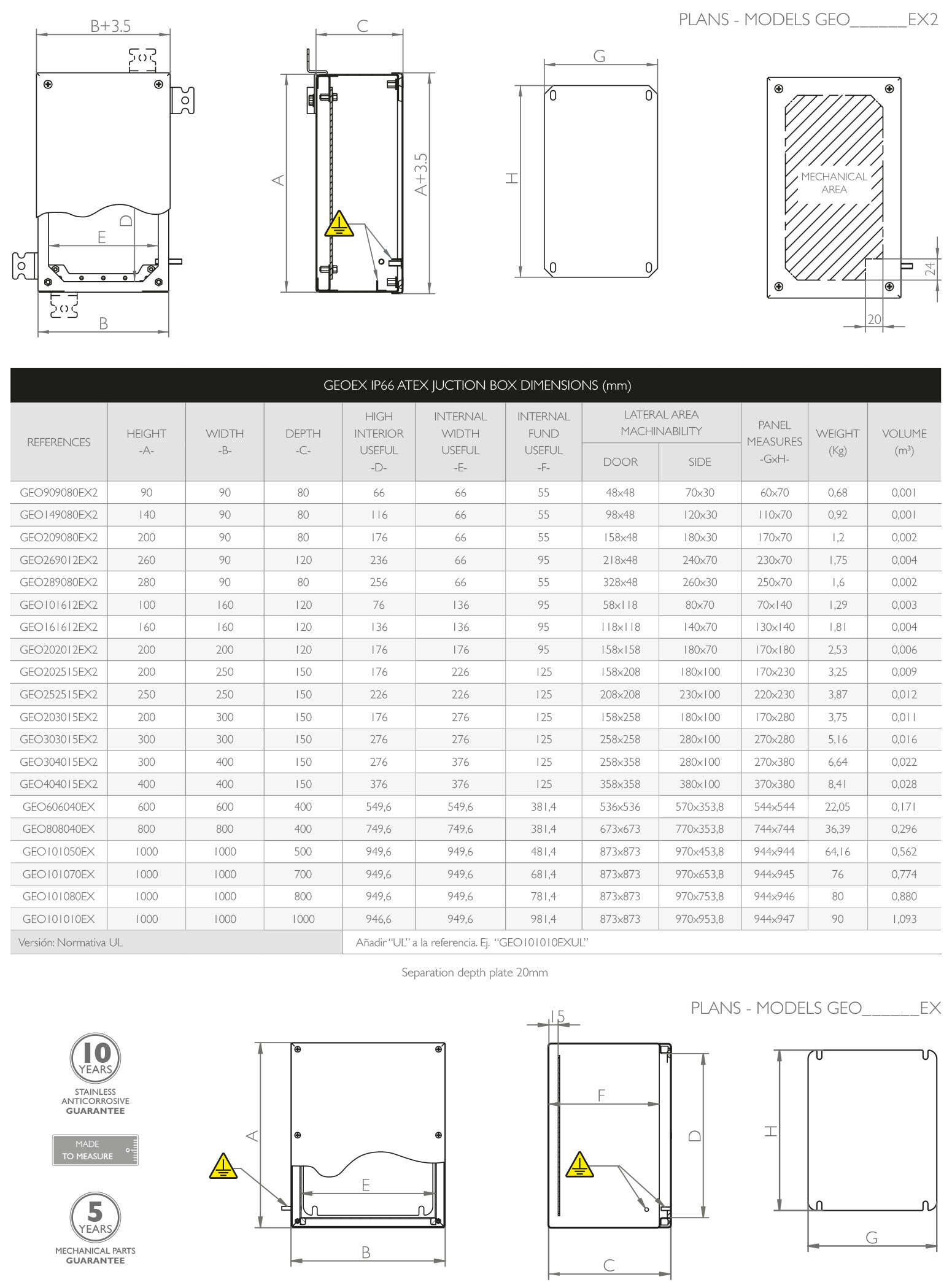

Sketches
