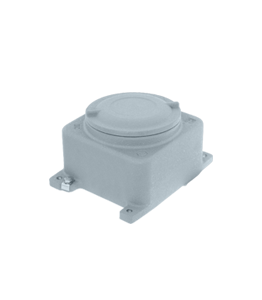

Aluminium Junction Box GUB

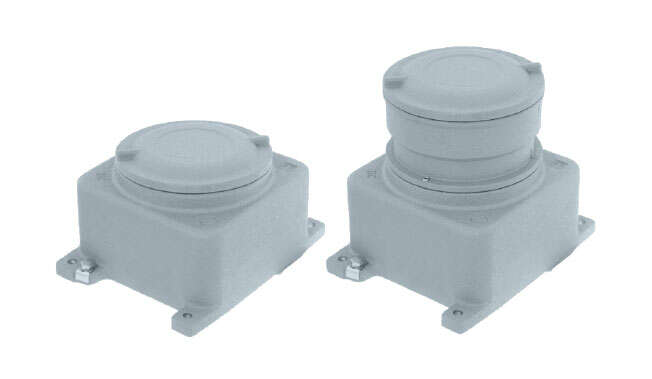

GUB Series

GUB series junction boxes have a screw cap and are used either as junction boxes with/without terminals or for installation of electrical equipment such as fuses, relays, disconnectors, remote control switches, transformers, ballast. GUB...V

Aluminium Junction Box GUB · Atex DelvalleAtex Delvalle

Description

GUB series junction boxes have a screw cap and are used either as junction boxes with/without terminals or for installation of electrical equipment such as fuses, relays, disconnectors, remote control switches, transformers, ballast. GUB...V series instrument housings, supplied with a circular borosilicate window, are used to contain analogical and digital instruments such as ammeters and voltmeters.

Discover the advantages

Body and lid: Low copper content aluminium alloy. Screw-on lid with safety fastening grub screw.
Gasket: Resistant to acids, hydrocarbons and high temperatures, located between body and lid.
Certification label: Adhesive label located inside on empty enclosures; aluminium label riveted onto body on other versions.
Bolts and screws: Stainless steel.
Earth screws: Stainless steel. On inside and outside of body complete with anti-rotation brackets.
Mounting: Cast aluminium feet.
Coating: Epoxy coating RAL 7035 (Light grey).
Corrosion Resistance: The STANDARD of the aluminium alloy used by Cortem has passed the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11(salt mist tests).

Regulations

• II 2(1)G Ex d[ia Ga] IIC T6 or T5

• II 2(1)GD Ex d[ia Ga] IIC T6 or T5
                  Ex tb[ia Da] IIIC T85°C or T100°C

• II 2GD Ex d IIC T6,T5 Gb
              Ex tb IIIC T85°C, T100°C Db IP66

Custom Made Solutions
We offer multiple solutions

Aluminium Junction Box GUB · Atex Delvalle
Do you need ATEX solutions?
2017 product catalogues

• Internal anti-condensation coating RAL 2004 (pure orange)
• Breather valve Code ECD-210S
• Drain valve Code ECD-210S
• External epoxy coatings in different colour
• GUB-...V series enclosures with round viewing window on lid
• Special version for GUB-05 enclosure with Cortem M-0..-series control device (code GUB-05/M)
• Internal mounting plate:
- 2.5mm-thick aluminium (code TF-...). See accessories section
- 2.5mm-thick electrogalvanized steel (code TF-...AC)
• Control and signalling devices installed on body. For GUB-05, handles can be installed on lid.
Thread options:
- NPT threads ANSI B1.20.1 - GAS UNI ISO 7-1 thread
- Metric threads ISO 261/965

Aluminium Junction Box GUB · Atex Delvalle

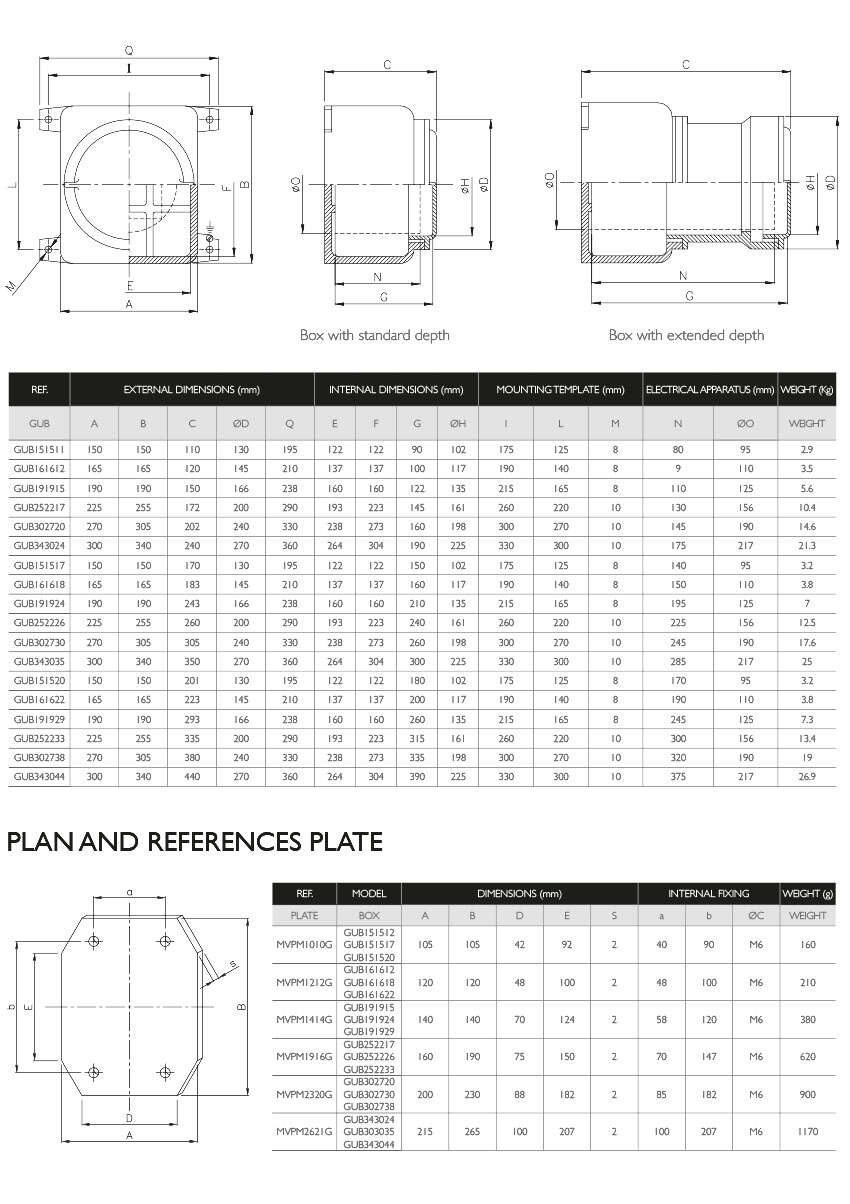

Sketches

Aluminium Junction Box GUB · Atex Delvalle

References

Show References
ReferenceDescriptionHighWidthBackground
GUB121211GUB JUNCTION BOX120120116GUB121211
GUB121214GUB JUNCTION BOX150150130GUB121214
GUB151513GUB JUNCTION BOX150150130GUB151513
GUB171714GUB JUNCTION BOX174174140GUB171714
GUB232316GUB JUNCTION BOX230230165GUB232316
GUB272721GUB JUNCTION BOX276276217GUB272721
GUB434329GUB JUNCTION BOX430430290GUB434329
GUB525232GUB JUNCTION BOX520520327GUB525232
