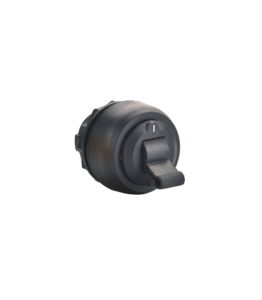

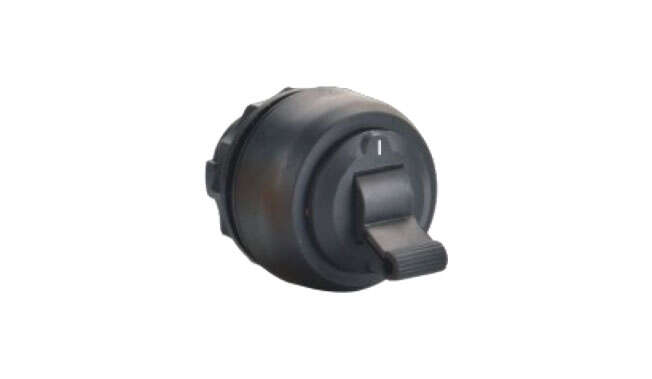

Ex Toggle Switch Operation Head

Delvalle Ex toggle switch operation head conform to Atex and IECEx certifications and they have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +65ºC.

Ex Toggle Switch Operation Head · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

Delvalle Ex toggle switch operation head conform to Atex and IECEx certifications and they have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +65ºC.

Regulations

  • Certificates number:
    • IECEx CML 19.0083U
    • CML 19ATEX3298U
  • Type protection:
    • Ex eb IIC Gb
    • Ex tb IIIC Db
  • Ambient temperature:
    • -55ºC to +65ºC
  • Standard:
    • Directive 2014/34/UE
    • EN IEC 60079-0:2018
    • EN IEC 60079-7:2015+A1:2018
    • EN 60079-31:2014
    • IEC 60079-0:2017
    • IEC 60079-31:2013
    • IEC 60079-7:2017

Applications

Ex control stations
Distribution boxes

Custom Made Solutions
We offer multiple solutions

Ex Toggle Switch Operation Head · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
Customers also bought:
Ex Switch · Atex DelvalleAtex Delvalle
Delvalle Ex switch operation head conform to Atex and IECEx certifications and they have high...
Ex Switch Module 4 Poles (Control Switch, Load Isolation Switch) · Atex DelvalleAtex Delvalle
Delvalle explosion-proof 4-pole switch module (control switch, load isolation switch) shall be used...
Ex Toggle Switch Operation Head · Atex Delvalle

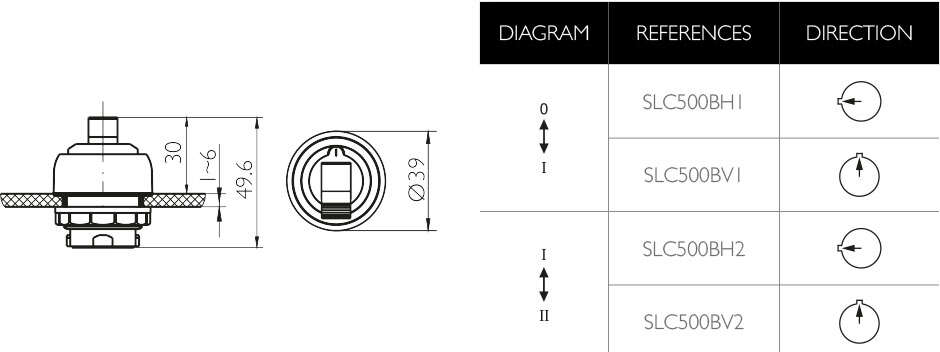

Sketches
