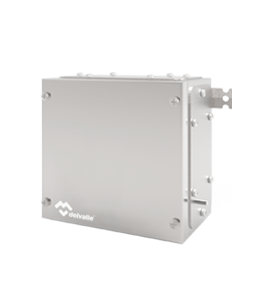

Gland Plate Ex e Terminal & Juntion Boxes

TERBOX SERIES

The Ex e terminal & juntion boxes Terbox Series, include a removable cable gland plate, being useful and effective in advance to place and mechanize the different holes for cable glands and even keypads.


This equipment consists in a waterproof IP65, robust, safe and corrosion resistant Ex terminal box, which has been specially designed to the customer’s specifications to perform the product and can deliver it in a record time.
These terminal boxes are placement in areas whereas a corrosive and hazardous areas.

Gland Plate Ex e Terminal & Juntion Boxes · Atex DelvalleAtex Delvalle
Gland Plate Ex e Terminal & Juntion Boxes · Atex DelvalleAtex Delvalle
Gland Plate Ex e Terminal & Juntion Boxes · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP65 · Atex Delvalle
  • Logo ROHS · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle

Description

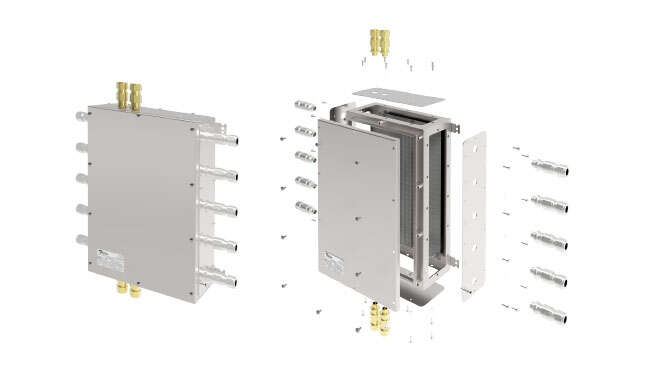

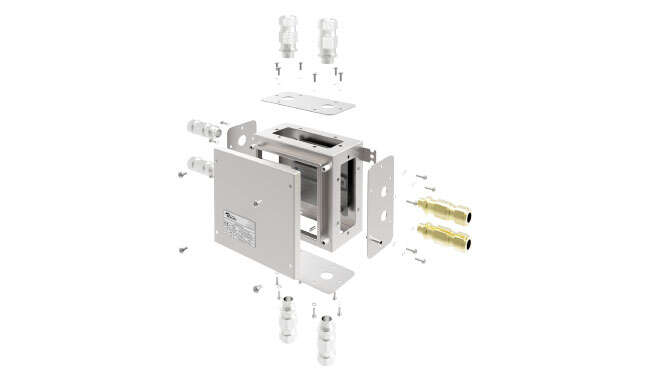

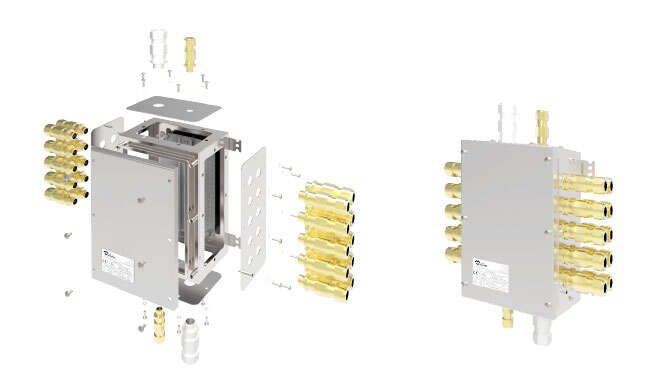

The Ex terminal boxes, Terbox Series include a removable cable gland plate, being useful and effective in advance to place and mechanize the different holes for cable glands and even keypads.
This equipment consists in a waterproof IP65, robust, safe and corrosion resistant Ex terminal box, which has been specially designed to the customer’s specifications to perform the product and can deliver it in a record time.
These terminal boxes are placement in areas whereas a corrosive and hazardous areas.
In this terminal boxes you can put terminals, keypads, cable glands perform controls and maneuvers in explosive atmospheres, according to customer’s specifications and be delivered with Atex final product certificate.
It’s design, offers custom made terminal boxes, the exact placement of the holes and glands in the cable gland lug. It’s easy disassembly that are subject by means of screws.

  • Ex Terminal boxes manufactured of stainless steel AISI 304L or AISI 316L marine corrosion resistant and polished elegant surface finish.
  • They are intended for use in explosive atmospheres listed as zones 1, 2, 21 and 22 and to place Ex components, terminals inside, as well as cable glands and keypads.
  • Large inside space that simplifies connection operations.
  • Great robustness, safety and resistance in the most aggressive environments.
  • Monobloc construction that achieves a perfect seal (IP65 minimum tightness) and IK10 impact resistance.
  • Preassembled body and cover.
  • Corrosion resistant guaranteed.
  • Standard screws in stainless steel AISI 316L.
  • Multiple access option (cable lids on all four sides).

Discover the advantages

Customized design and execution of cable gland’s accessories.
Available in stock for express delivery.
Easily disassembly and be possible modify the design during its assembly.
Optimized functionality thanks to a wide range of integrated equipment
Polished finish on all sides.
Simplify cable gland’s opening, to perform our product.
Quick delivery in the goods, amount of boxes in stock.
Versatility of the product compare to other types of Terminal boxes, cause being customized adapts better to owner’s needs.
Robustness, security, guaranteed reliability.
IECEx components already installed inside.
Anti-corrosion protection guaranteed.
Great safety and resistance in the most aggressive explosive environments thanks to the design and the materials used in its manufacture.

Regulations

This enclosure is certified for use in potentially explosive atmospheres in zones 1, 2, 21 and 22 and may be used with increased safety protection mode “Ex e” including increased safety connection terminals or enclosure protection mode “Ex tb”.

  • Atex protection mode:
    • II2G  Ex e IIC T6/T5 Gb
    • II2D  Ex tb IIIC T6/T5 Db
  • IECEx protection mode:
    • Ex e IIC T6/T5 Gb
    • Ex tb IIIC T6/T5 Db
    • Degree of resistance against impact IK10
    • IP65 protection

Atex & IECEx directive and regulations:

  • Certificate of the envelope as a component:
    • LOM 14ATEX2082
  • Atex directive 2014/34 / EU
  • IP65 according to IEC Standard EN 60529.
  • Degree of resistance against impact IK10 according to standard IEC 62262.
  • EN 60079-7: 2007
  • EN 60079-31: 2014
  • EN-EN 60079-0: 2012
  • Complies with RoHs regulations.

Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Gland Plate Ex e Terminal & Juntion Boxes · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues
  • You can choose 3 different models cable gland boxes.
  • We manufacture with waterproof  and Atex & IECEx certifications.
  • The terminal boxes can be used with increased safety protection mode “Ex e” including increased safety connection terminals or “Ex t” enclosure protection mode.
  • Terminal boxes used with enclosure protection mode.
  • These control stations may be used for connection of intrinsically safe circuits.
  • 3D design and layout of custom components.
  • The product offers the possibility to use Atex cable glands, as well as Roxtec cable entry systems.
  • It is in stainless steel material grade AISI 3014L, AISI 316L and polyester painted galvanized steel sheet.
  • Materials available: AISI 304L and AISI 316L for maritime and corrosive environments.
Customers also bought:

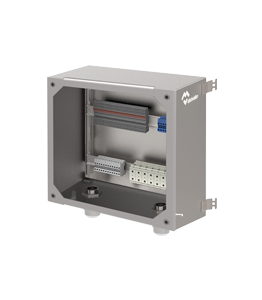

Stainless steel Ex E Junction Boxes IP66 · Atex DelvalleAtex Delvalle
Stainless steel Ex E terminal and junction boxes "Terbox Series", has been developed for...

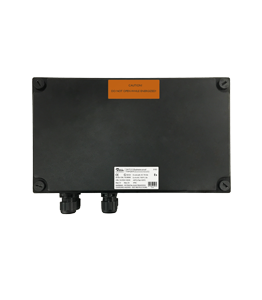

Ex GRP Junction Boxes · Atex DelvalleAtex Delvalle
Terbox Series, IP66 terminal & junction boxes are made of glass fibre reinforced polyester GRP....

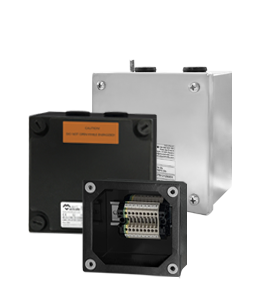

Pre-Installed Atex Junction Box · Atex DelvalleAtex Delvalle
The terminal boxes Atex Terbox terminals are pre-assembled in stock, delivery time of 24 hours....
Gland Plate Ex e Terminal & Juntion Boxes · Atex Delvalle

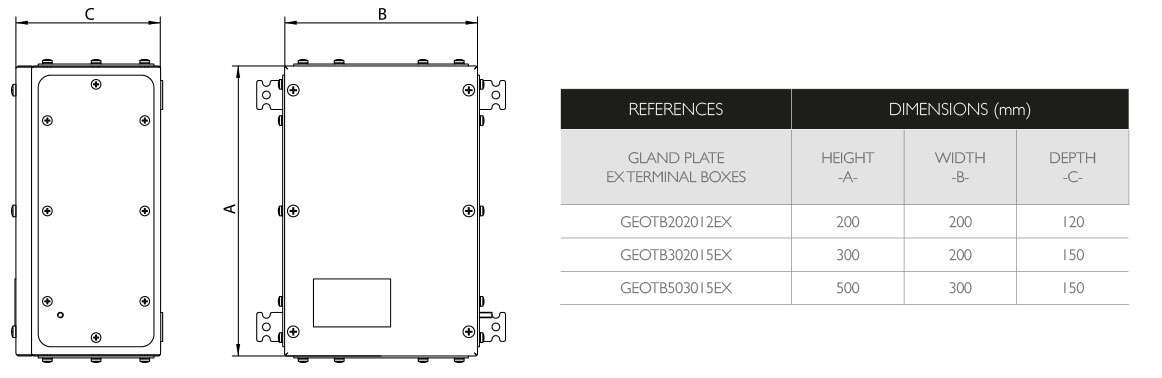

Sketches
