Explosion Proof Enclosure Ex D

EJB SERIES

The explosion proof enclosures EJB series Ex d enclosures are made to be installed in areas classified Zone 1, 2, 21 and 22, where there is danger of explosion and/or fire or presence of combustible dusts.
Explosion proof junction box,expplosion proof enclosure,hazardous enclosures,ex d enclosures.

Call us now and save money!

Explosion Proof Enclosure Ex D · Atex Delvalle

This product has the following certificates

Description

The flameproof control panels EJB are made to be installed in areas classified Zone 1, 2, 21 and 22, where there is danger of explosion and/or fire or presence of combustible dusts. They are manufactured with an specific aluminum alloy, and they stand out because of its mechanical characteristics in the surface finish. explosion proof junction box

CHARACTERISTICS:

• Custom-made drills.
• Dimensions: Up to 1000x700x400mm.
• Working temperature: From -50º to +60ºC.
• They are designed for use in areas subject to explosion risk. and hazardous areas 1, 2, 21 and 22.
• Materials:

- Module and cover: Aluminum alloy with a low content of copper.

- Seals: resistant silicone against high temperatures and acids.

- Screws: Stainless steel.

- Fixing brackets: Galvanized steel.

Explosion proof junction box,expplosion proof enclosure,hazardous enclosures,ex d enclosures

Download all documents and certificates

Product

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

The explosion proof EJB series Ex d enclosures are made to be installed in areas classified Zone 1, 2, 21 and 22, where there is danger of explosion and/or fire or presence of combustible dusts. They are manufactured with an specific aluminum alloy, and they stand out because of its mechanical characteristics in the surface finish.

TWO POSSIBILITIES:

The explosion proof EJB enclosures with solid lids: The EJB Atex Ex d enclosures with solid lids are used when there is a big number of control and signalling devices that need to be installed in certain positions on the lid.

The explosion proof EJB enclosures with ribbed lids: The EJB Atex Ex d enclosures with ribbed lids are used when there is no particular need to install control and signalling devices on the lid. In addition, they weigh less, meaning they are easier to mount than enclosures with solid lids.

Regulations

All products manufactured by Atex Delvalle comply with ATEX and IECEx certification to answer the strictest requirements worldwide. We also comply with the UL Standards as well as CE certifications.

NORMS

• CENELEC EN 60079-0: 2009, EN 60079-1: 2007, EN 61241-0: 2006, EN 60079-31: 2009 and EN 60529: 1991.
• Guaranteed corrosion protection: EN 60068-2-30 and EN 60068-2-11.
• Degree of protection: IP66/67. Acording to 94/9/CE: 1994 directive.
• IEC EX.
• GOST R.
• INMETRO (Brasil).
• Flameproof: II 2 GD - Ex d IIB+H2 Gb - Ex tb IIIC Db - IP66/67.

• II2(1)G   Ex d[ia Ga] IIB T6, T5 Gb or Ex d[ia Ga]
                 IIB+H2 T6, T5 Gb
• II2(1)GD Ex d[ia Ga] IIB T6, T5 Gb
           Ex tb[ia Da] IIIC T85°C, T100°C Db IP66/67
       or Ex d[iaGa] IIB+H2 T6,T5Gb
       Ex tb[ia Da] IIIC T85°C, T100°C Db IP66/67

• II2G   Ex d IIB T6, T5, T4 Gb
• II2GD Ex d IIB T6, T5, T4, Gb
             Ex tb IIIC T85°C, T100°C, T135°C Db IP66/67
         or Ex d IIB + H2 T6, T5, T4, Gb
             Ex tb IIIC T85°C, T100°C, T135°C Db IP66/67

Applications

APPLICATIONS

Specially designed for:

- Oil & Gas.
- Offshore & Marine.
- Industry & process automation .
- Chemical and refinery.
- Pharmaceutical.
- Maritime.
- Fieldstations.
- Food and beverages.
- Print industry.
- Air transport.
- Nuclear and renewable.

And, in general, all risk areas where a flameproof product is necesary.

Custom Made Solutions
We offer multiple solutions

Do you need ATEX solutions?

Atex Delvalle has the solution

2021 product catalogues

Download Zone

OPTIONS

• Control and signage devices.

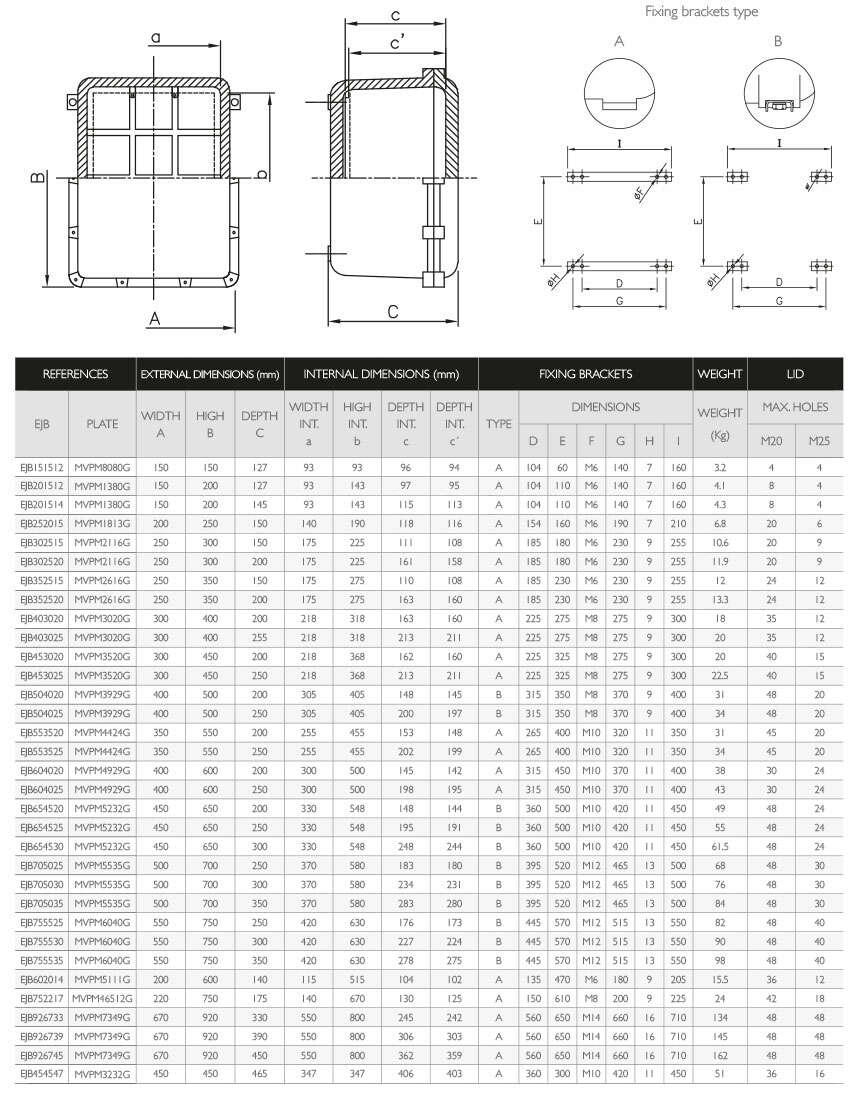

Sketches
