Ex Push Button Station Contrex

CONTREX SERIES

We manufacture stainless steel AISI 304 and AISI 316L control station Atex control boxes. They are specially designed to perform checks, maneuvers and as actuators in explosive atmospheres.
Wide variety of sizes and functions, available as standard products for quick supply and as custom built parts to meet the users‘ exact requirement.

We have three models in the Contrex Series:
• Control stations screw closure (Contrex-Geoex Series)
• Hinged terminal & junction boxes (Contrex-Luxorex Series)
• High capacity & junction boxes (Contrex-Tribex Series)

Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP6x · Atex Delvalle
  • Logo UL NEMA 12 · Atex Delvalle
  • Logo UL NEMA 3R · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle

Description

Atex control boxes.They are specially designed to perform checks, maneuvers and as actuators in explosive atmospheres.They have a rugged, corrosion system and nished in stainless steel. Allowing you to take control of both machines in zones 1, 2, 21 and 22. It allows you to perform maneuvers and controls at the machine in hazardous areas and take programming and automation in a safe area. Offering customers a great combination of possibilities and exibility. Select the component that best suits your operator panels, keypads, mushrooms, switches, ammeters, etc, and you assemble all with Atex certificed, Ex, IECEx and UL.

Discover the advantages

Easy assembly.
Customized solutions.
It allows you to perform maneuvers and controls at the machine in hazardous areas.
You can take the programming and automation in a safe area.
Great combination of possibilities and flexibility.
Robust.
Anticorrosive.

Great ended up in stainless steel.

Regulations

  • Explosion protection
    • Ex II 2G Ex edqm ia/ib [ia/ib] II, IIA, IIB, IIC,T6, T5 o T4
    • Ex II 2D Ex tb T80 oC,T 95 oC,T130 oC, IP66.
  • Permissible ambient temperature: -25ºC
  • Cable entry:
    • Standar: A gland in the lower side of M25.
    • Special: Glands on the side, and other sizes. Consult information.
  • Max connection: Terminals 2,5mm2
  • Protection type: IP66
  • Case material: AISI304L, optional AISI316L.



Applications

Specially designed for areas where facilities require additional security. And in general, hazardous areas and explosive atmospheres where flameproof equipment are necessary.

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Ex Push Button Station Contrex · Atex Delvalle
Do you need ATEX solutions?
2022 product catalogues

Choose the component that best adapts your control boxes: button, mushrooms, switches, ammeters, etc, and We will assemble all with Atex certified, Ex - IECEx and UL.
Keep control in any area with maximum security and flexibility.
Push Button station and control boxes atex made of reinforced polyester GRP.

Customers also bought:
Ex Push Button Station Contrex · Atex DelvalleAtex Delvalle
We manufacture stainless steel AISI 304 and AISI 316L control station Atex control boxes. They are...
Cable Glands Atex Increased Security IP68 · Atex DelvalleAtex Delvalle
Cable glands Atex thread metric increased security IP66 - IP68 made by Atex Delvalle are used for...
Ex Push Button Station Contrex · Atex Delvalle

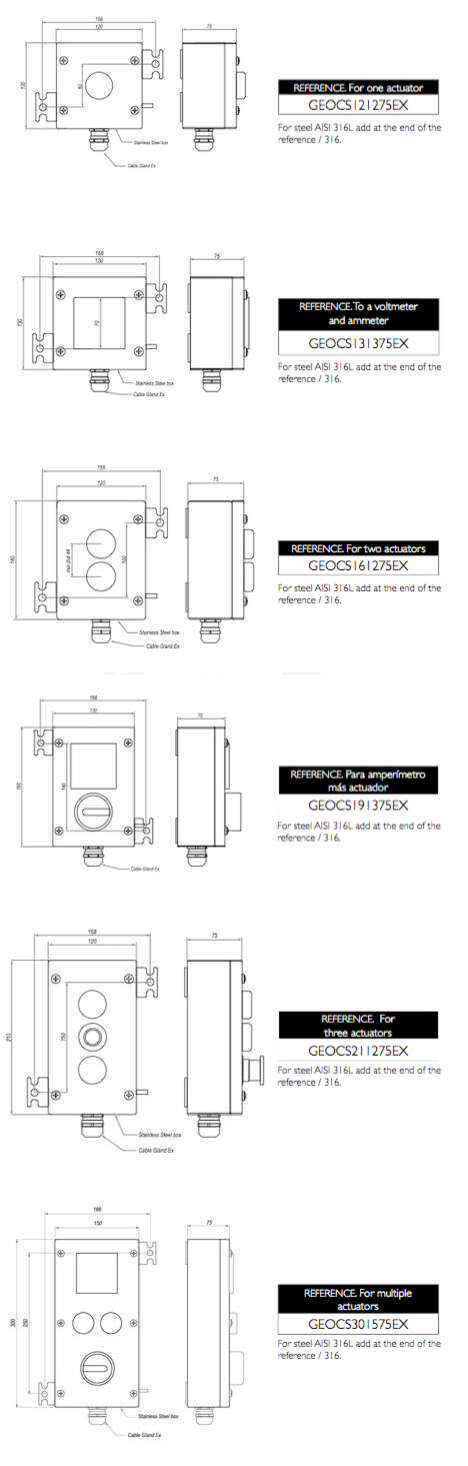

Sketches
