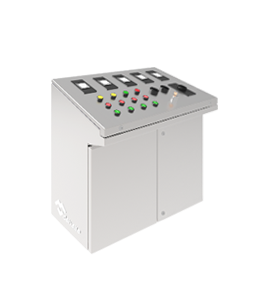

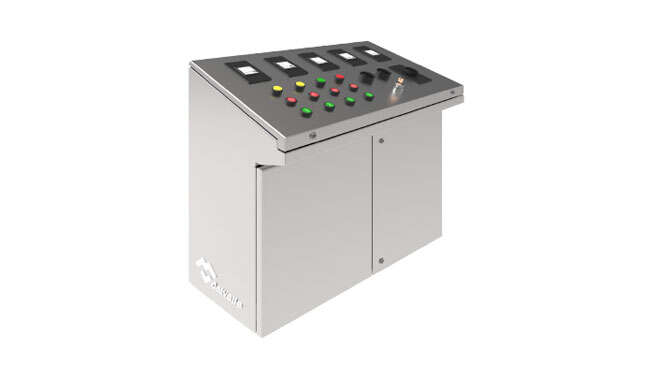

Control Desk Atex & IECEx

This Atex & IECEx desk allows the control of many Atex & IECEx components and devices from control panel thanks to the easy control with selectors, push buttons, buttons with key, viewers, red mushrooms, alarms, light signals...
Its use is for industries zones with explosion risk, oil & gas and petro chemical industries.
It’s based on the component placement, which is designed according to the customer needs to get a desk with a high view, comfort and control. Every component has Atex & IECEx certification.
This Atex & IECEx desk has been designed specifically as an anticorrosion and waterproof desk, made of stainless steel AISI 304L or AISI 316L, allowing its use in zones with high explosion or corrosion risk. Besides, it guarantees an IP66 protection.

Control Desk Atex & IECEx · Atex DelvalleAtex Delvalle
Control Desk Atex & IECEx · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP6x · Atex Delvalle
  • Logo 10 year anti-corrosion · Atex Delvalle
  • Logo Chemical resistant · Atex Delvalle
  • Logo Corrosion resistant · Atex Delvalle
  • Logo Scrach resistant · Atex Delvalle
  • Logo Waterproof · Atex Delvalle

Description

This Atex & IECEx desk allows the control of many Atex & IECEx components and devices from control panel thanks to the easy control with selectors, push buttons, buttons with key, viewers, red mushrooms, alarms, light signals...
Its use is for industries zones with explosion risk, oil & gas and petro chemical industries.
It’s based on the component placement, which is designed according to the customer needs to get a desk with a high view, comfort and control. Every component has Atex & IECEx certification.
This Atex & IECEx desk has been designed specifically as an anticorrosion and waterproof desk, made of stainless steel AISI 304L or AISI 316L, allowing its use in zones with high explosion or corrosion risk. Besides, it guarantees an IP66 protection.

Discover the advantages

Configurations can be made following the customer´s requirements, being able to choose as many control components as needed. This way can be controlled many machines.
This desk is an easy and comfortable way to work and control more than one machine or section.

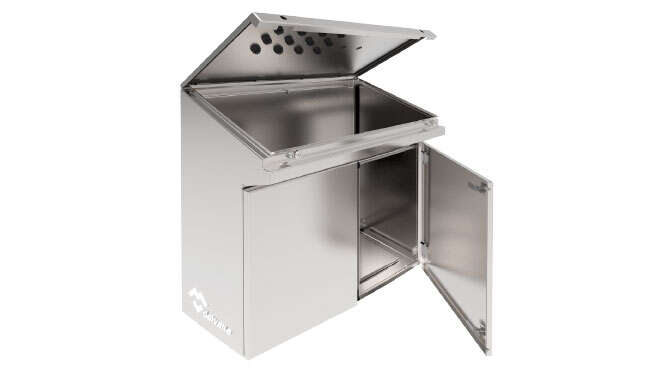

Easy opening with doors and fasteners.
The console has doors which open laterally up to 120º and is opened smoothly and easily than to the shock absorbers.
This desk guarantees worker security  because it controls the machines remote, making impossible to be injured by one of the machines.
Really long useful life, about 100.000 work hours, and it give the machines a longer useful life too.

Regulations

Atex mark:

  • II2G Ex d e IIC T6/T5 Gb
  • II2D Ex tb IIIC T85°C /T100°C Db

IECEx mark:

  • Ex d e IIC T6/T5 Gb
  • Ex tb IIIC T85°C/T100°C Db
  • Atex directive and regulation:

  • Atex directive 2014/34/EU
  • EN 60079-0:2012
  • EN 60079-1:2007
  • EN 60079-7:2015
  • EN 60079-31:2010

IECEx regulation:

  • EC 60079-0:2011
  • IEC 60079-1:2006
  • IEC 60079-7:2015
  • IEC 60079-31:2013

Enclosure regulation:

  • IP regulation (IP65): IEC 60529
  • IK regulation (IK10): IEC 62262

Low voltage directive and regulation:

  • Directive 2014/35/UE
  • EN 61439-12011
  • EN 61439-22011



Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas.
  • Offshore & Marine.
  • Industry & process automation .
  • Chemical and refinery.
  • Pharmaceutical.
  • Maritime.
  • Fieldstations.
  • Food and beverages.
  • Print industry.
  • Air transport.
  • Nuclear and renewable.

Custom Made Solutions
We offer multiple solutions

Control Desk Atex & IECEx · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
  • There are many control components.
  • All control which can be installed: push buttons, selectors, viewers (ammeter and voltmeter), red mushrooms, sound and light alarms.
  • It’s possible to configure Atex & IECEx desks or control panels.
  • This desk can be made of stainless steel AISI 316L.
