Atex Terminal Boxes IP66

TERBOX SERIES

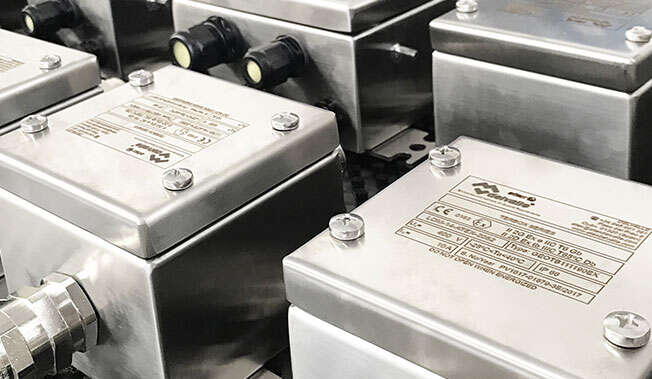

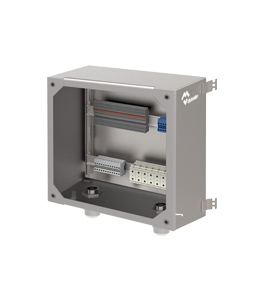

The stainless steel Ex junction boxes "Terbox Series", has been developed for installations in hazardous areas 1, 2, 21 and 22. For installation of signal and power distribution networks in explosion hazardous areas.

We have diferents door types; screw closure, hinged enclosures,  and stand large capacity enclosures.

They are certified according to the latest Atex and other international standards, types of explosion protection include Ex e, Ex ia and Ex tb.

TURNKEY PROJECTS. Options available include sizes, colours, types of connection among others. As we have a close relationship with the main Atex & IECEx certified companies in our field, we achieve total adaptability and flexibility being manufacturers.

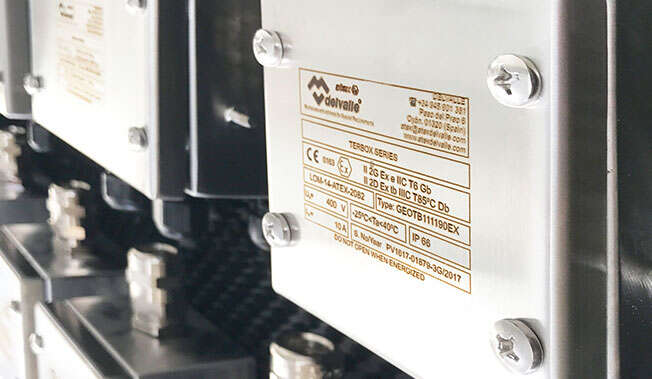

Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle

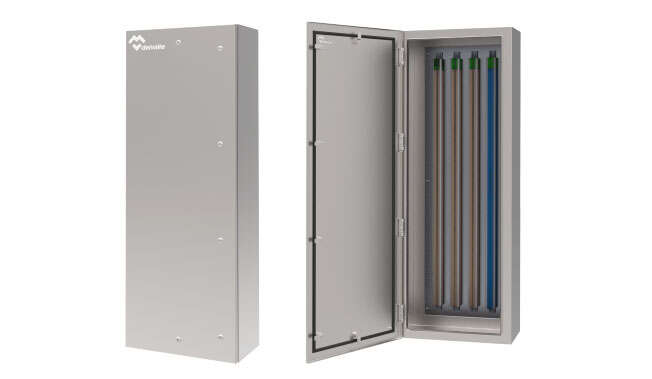

Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle

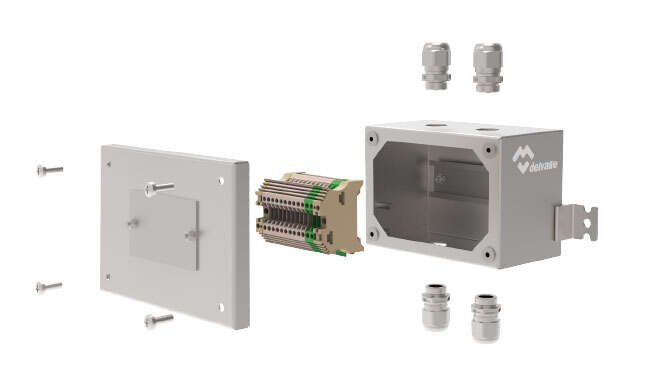

Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle

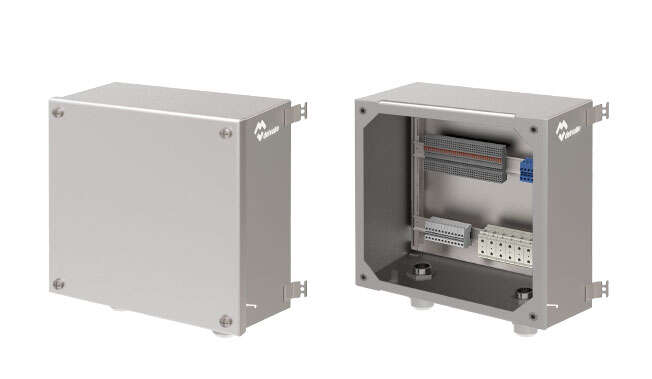

Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle

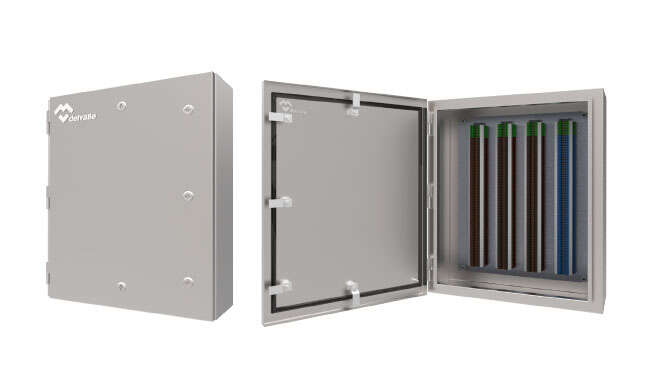

Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle
Atex Terminal Boxes IP66 · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo ROHS · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle
  • Logo 10 year anti-corrosion · Atex Delvalle
  • Logo 5 year mechanical parts · Atex Delvalle
  • Logo Chemical resistant · Atex Delvalle
  • Logo Corrosion resistant · Atex Delvalle
  • Logo Scrach resistant · Atex Delvalle
  • Logo Waterproof · Atex Delvalle

Description

For installation of signal and power distribution networks in explosion hazardous areas, various types of terminal boxes and junction boxes are available.
They are certified according to the latest ATEX and other international standards, types of explosion protection include Ex e, Ex ia, and Ex tb.

Several enclosure size and material options, as well as the configuration with terminal and cable gland types according to user specification, ensures the optimal solution to any application requirements.

We have terminal juction boxes screw closure (Terbox-Geoex Series), hinged terminal & junction boxes (Terbox-Luxorex Series) and high capacity & junction boxes (Terbox-Tribex Series).

All types are robust, durable, and highly heat resistant.
Distinctive construction features facilitate installation and maintenance.
The terminal boxes IP66 Terbox can be used in projects requiring the assembly and certification of junction boxes with terminals, cable glands, and buttons. That allows saving costs and time.

  • Made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.
  • For use it in zones 1, 2, 21 and 22 and to place Ex components terminals.
  • Easy opening of boxes thanks to a screwed cover.
  • Strict IEC 60079-7 tests passed.
  • Seawater resistant.
  • External ground connection M6.
  • Wide range of ambient temperatures.
  • Thickness 1.5 mm (depending on boxes).
  • With optional cable entry cover and hinges.
  • Different mounting options.



Discover the advantages

Certification of junction boxes with terminals, cable glands, and buttons.

That allows saving costs and time.

Cover fixed with easy placement screws.

Seawater resistant.

External ground connection M6.

Wide range of ambient temperatures.

Thickness 1.5 mm (Depending boxes).

With optional cable entry cover and hinges.

Different mounting options.

Regulations

All products manufactured by Atex Delvalle comply with ATEX and IECEx certification to answer the strictest requirements worldwide. We also comply with the UL Standards as well as CE certifications.

Atex & IECEx directive and normative:

  • Atex 2014/34/EU directive
  • IP66 according to IEC Standard  EN 62208 and EN 60529.
  • IP (W) 66 corrosive environments.
  • IEC 62208 and EN 62262. Degree of resistance against impact IK10.
  • UNE-EN 60079-0:2011
  • UNE-EN 60079-7:2007
  • UNE-EN 60079-31:2014
  • Operating temperature (ambience):
    • -25° a ≤60°C.
  • According to directive EN 60079-0 for empty enclosures:
    • II2G Ex eb  IIC Gb
    • II2D Ex tb IIIC Db IP66
  • According to directive EN 60079-0 for terminal boxes:
    • II2G Ex eb  IIC Gb
    • II2D Ex tb IIIC Db IP66
  • Certificate empty box terminal:
    • LOM 14ATEX3028U
  • Certificate Terbox:
    • LOM  14ATEX2082
  • Certificate quality:
    • LOM 14ATEX9050
  • Maximum IK10 norm IEC 62262.
  • Voltage range: max. 1100 V and current and voltage range: max. 350 A (depending on the types of terminal and Ex components used).



Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

  • Oil & Gas
  • Offshore and Marine
  • Industry and process automation
  • Chemical and refinery
  • Pharmaceutical
  • Maritime
  • Fieldstations
  • Food and beverages
  • Print industry
  • Air transport
  • Nuclear and renewable



Custom Made Solutions
We offer multiple solutions

Atex Terminal Boxes IP66 · Atex Delvalle
Do you need ATEX solutions?
2021 product catalogues
  • Available up to IP67 or IP68.
  • Made of stainless steel AISI 304L or AISI 316L.
  • Optional cable entry cover.
  • Optional hinges.
  • Different mounting options.
Customers also bought:

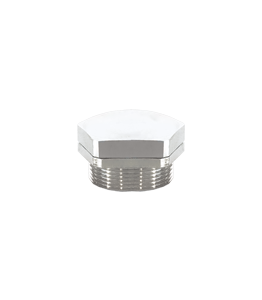

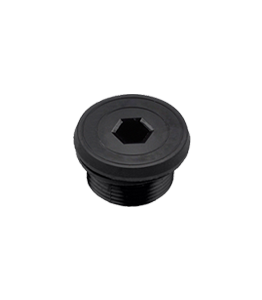

Plug Polyamide Ex e IP66 · Atex DelvalleAtex Delvalle
Stopper plug thread metric polyamide Ex e IP66. Operating temperature of -40°C to + 55°C....
Reducer Ex d/e IP66 - IP68 · Atex DelvalleAtex Delvalle
Reducer Ex d/e IP66 - IP68 metric and NPT nickel plated or stainless steel. Operating temperature...
Double Compression Cable Glands Armoured Atex Ex d/e IP68 · Atex DelvalleAtex Delvalle
Double compression cable glands nickel plated and stainless steel Atex Ex d/e IP66 - IP68 made by...
Plug Ex d/e NPT Thread IP68 · Atex DelvalleAtex Delvalle
Plugs Ex d/e blind metric stainless steel thread Atex IP66 - IP68. Operating temperature of -60°C...
Atex Terminal Boxes IP66 · Atex Delvalle

Sketches

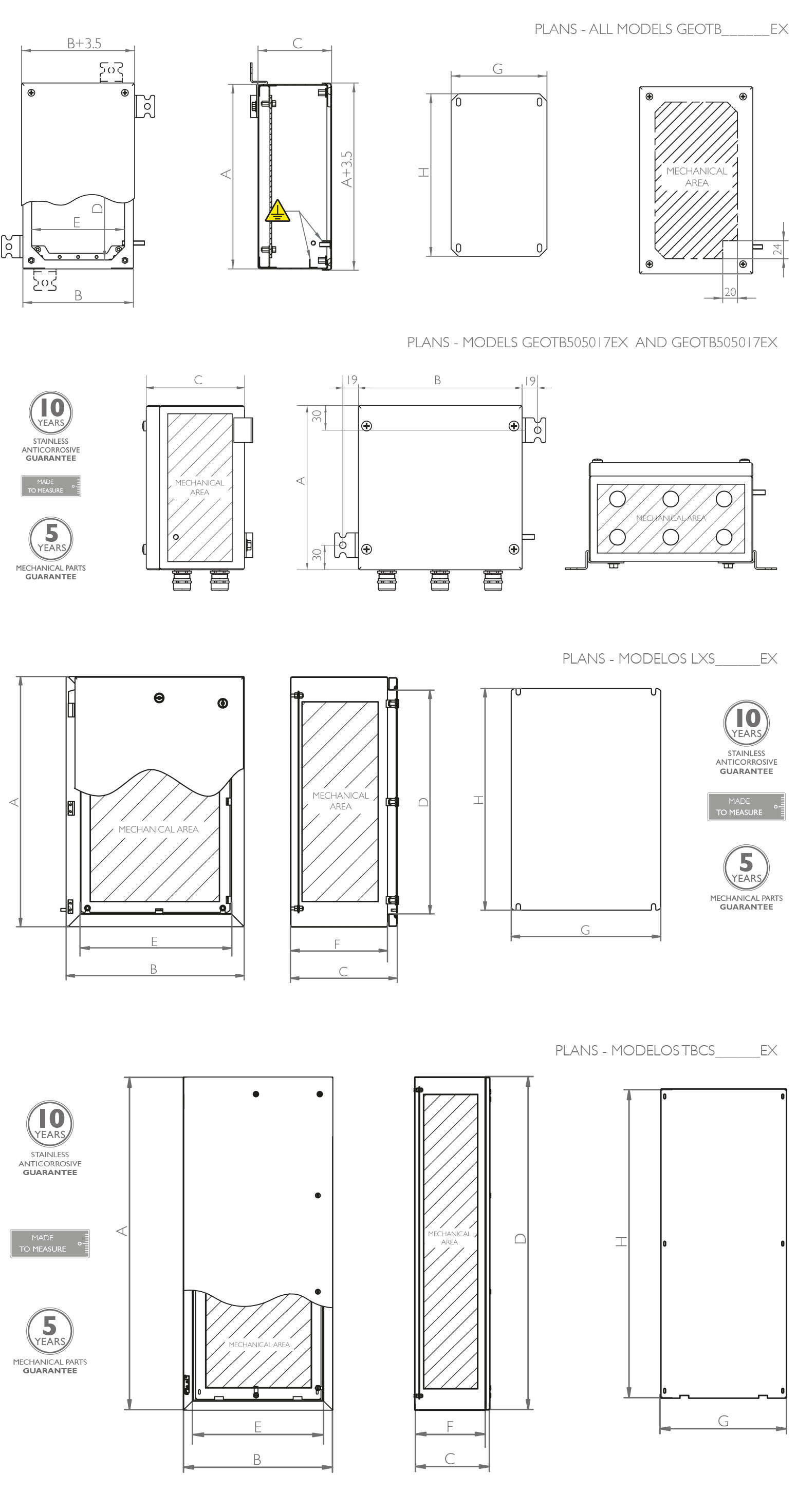

PLANS · Atex Delvalle
