Atex Displays

We have different types of ex displays indicators with intrinsic safety: fieldbus display and fieldbus indicators, totalizers and serial text displays: these screens provide messages, warnings or suggestions in areas of explosive atmospheres 1 and 21. Atex certified.

These ex devices are elements of intrinsic safety; the intrinsic safety , Ex Displays is very interesting to add our Ex enclosures for Atex areas and explosive atmospheres.

Atex Displays · Atex DelvalleAtex Delvalle
Atex Displays · Atex DelvalleAtex Delvalle
Atex Displays · Atex DelvalleAtex Delvalle

Description

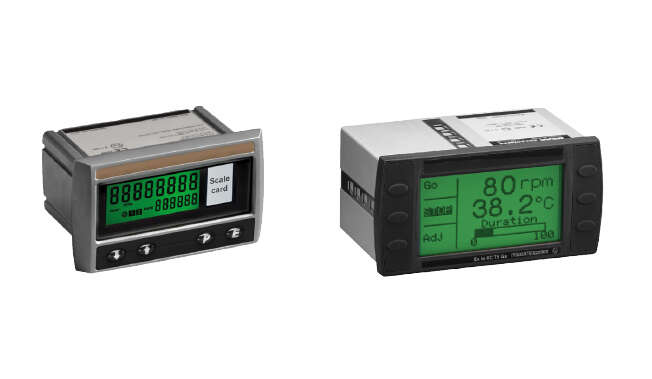

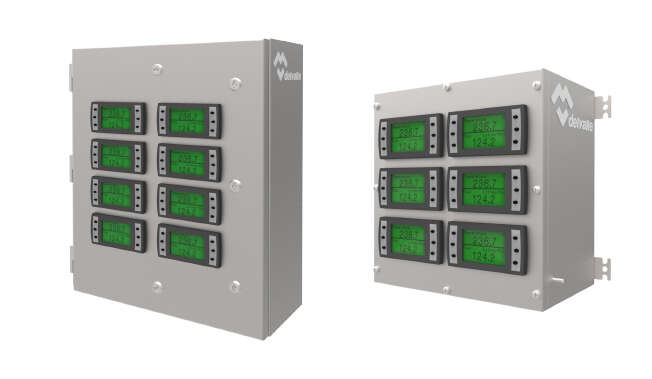

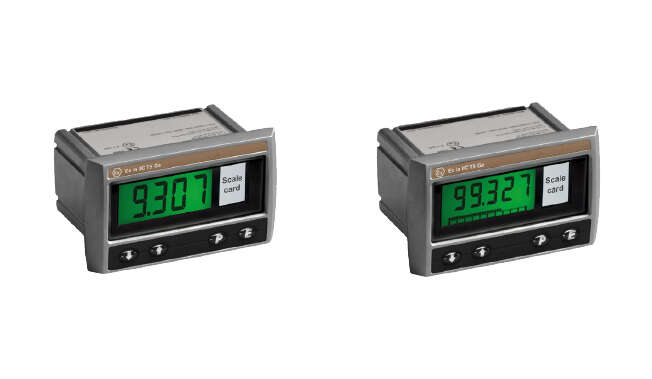

We have different types of indicators with intrinsic safety:

  • Fieldbus display and Fieldbus indicators: these fieldbus devices can have up to 8 different variables, with which different values will be measured and calculated, and the fieldbus users’ status information will be provided in a fieldbus network. In monitoring mode, the device monitors the configured bus addresses and displays their specific values. Also, the values available on the bus can be displayed by interconnecting the function blocks in the case of a fieldbus indicator. The status of the process value is displayed with icons or as text in the indicator itself. The device receives power from the fieldbus and can be used in hazardous areas up to temperature class T6. Compatible with FOUNDATION protocol and PROFIBUS PA protocol.
  • Totalizers: they are measuring devices capable of retaining data and quantifying them. And simultaneously, provide information on the accounting of such data. They can also be programmed to act in a certain way when any of the data collected exceeds a previously defined value.
  • Serial text displays: these screens provide messages, warnings or suggestions in areas of explosive atmospheres 1 and 21.

These devices are elements of intrinsic safety; the intrinsic safety method is based on limiting the energy of the possible spark so that it does not occur. This is very interesting in the areas of explosive atmospheres, since in this way, the apparatuses do not need of other elements of protection.

Achieve all the safety and security you need

  • Logo Atex · Atex Delvalle
    Atex
  • Logo CE · Atex Delvalle
    CE
  • Logo IECEx · Atex Delvalle
    IECEx
  • Logo IK10 · Atex Delvalle
    IK10
  • Logo IP66 · Atex Delvalle
    IP66
  • Logo ROHS · Atex Delvalle
    ROHS
  • Logo UL NEMA 4X · Atex Delvalle
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Atex Delvalle
    10 year anti-corrosion
  • Logo Chemical resistant · Atex Delvalle
    Chemical resistant
  • Logo Corrosion resistant · Atex Delvalle
    Corrosion resistant
  • Logo Scrach resistant · Atex Delvalle
    Scrach resistant
  • Logo Waterproof · Atex Delvalle
    Waterproof

Discover the advantages

Specially designed for Atex environments, these devices are intrinsically safe
Devices capable of measuring and calculating up to 8 variables
Backlight displays
RS232 and RS485 ports and two solid state outputs

Regulations

  • Comply with the Atex 2014/34 / EU Directive
  • EN 60079-0:2009
  • EN 60079-7:2007
  • EN 60079-11:2012
  • EN 60079-31:2009
  • II1/2G    Ex ia/ib II* T6 Ga/Gb.
  • II1/2D    Ex ia/ib IIIC T80ºC Da/Db
  • Atex certificate for zone 0, 20, 1, 21, 2 y 22
  • Certificates:
    • As component: LOM 14Atex3028U
    • As equipment: LOM 14Atex2082
  • Quality certificate:
    • LOM 14Atex9050
  • Degree of protection: depending on model, up to IP66
Atex Displays · Atex Delvalle

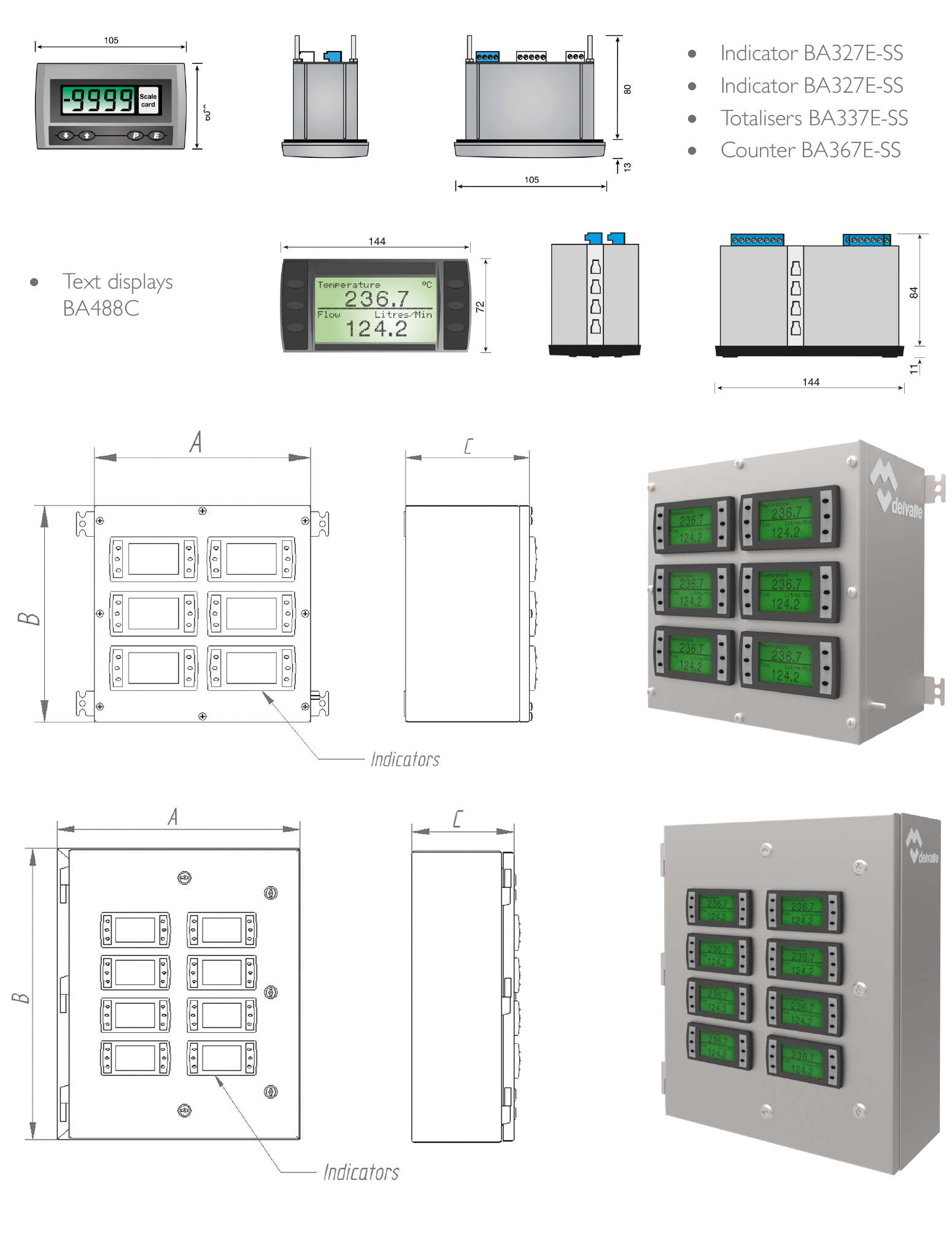

Sketches

BLUEPRINT AND DIMENSIONS · Atex Delvalle

References

Show References
ReferenceDescriptionHighWidthBackground
GEOCS202012IEXINDICATOR GEOEX (2)200200120GEOCS202012IEX
GEOCS302015IEXINDICATOR GEOEX (3)300200155GEOCS302015IEX
GEOCS303520IEXINDICATOR GEOEX (6)300350200GEOCS303520IEX
GEOCS353520IEXINDICATOR GEOEX (6)350350200GEOCS353520IEX
LXCS3830155IEXINDICATOR LUXOREX (3)380300155LXCS3830155IEX
LXCS504021IEXINDICATOR LUXOREX (4)500400210LXCS504021IEX
LXCS605021IEXINDICATOR LUXOREX (8)600500210LXCS605021IEX
LXCS1008040IEXINDICATOR LUXOREX (24)1000800400LXCS1008040IEX
