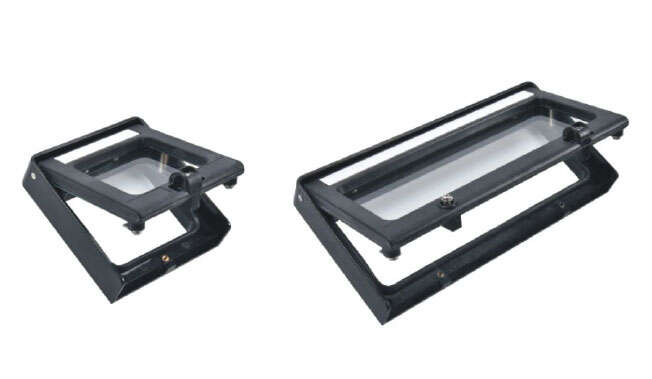

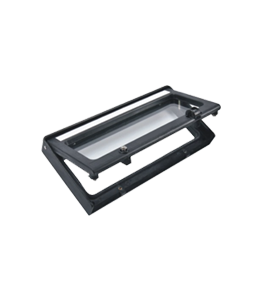

Ex Operation Window for Distribution Box

Atex Delvalle operation window for distribution box made in GRP or polyamide, shall be mounted inside ‘Ex e’ and ‘Ex d’ stainless steel or GRP enclosures conform to Atex and IECEx certifications.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +80ºC.

Ex Operation Window for Distribution Box · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

Atex Delvalle operation window for distribution box made in GRP or polyamide, shall be mounted inside ‘Ex e’ and ‘Ex d’ stainless steel or GRP enclosures conform to Atex and IECEx certifications.
They have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +80ºC.

Regulations

  • Certificates number:
    • CML 19ATEX3301U
    • IECEx CML 19.0086U
  • Type protection:
    • II2GD   Ex eb IIC Gb
    • Ex tb IIIC Db
  • Ambient temperature:
    • -55ºC to +80ºC
  • Standard:
    • EN IEC 60079-0:2018
    • EN IEC 60079-7:2015+A1:2018
    • EN 60079-31:2014
    • IEC 60079-0:2017
    • IEC 60079-31:2016
    • IEC 60079-7:2017

Custom Made Solutions
We offer multiple solutions

Ex Operation Window for Distribution Box · Atex Delvalle
Do you need ATEX solutions?
2020 product catalogues

Different dimensions:

  • 281x139
  • 121x139
Ex Operation Window for Distribution Box · Atex Delvalle

Sketches

DIMENSIONS AND REFERENCES · Atex Delvalle
