Ex Ammeter

Delvalle Ex ammeter conform to Atex and IECEx certifications. Have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

Ex Ammeter · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

Delvalle Ex ammeter conform to Atex and IECEx certifications. Have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22.

  • Mounting for board front rail mounting. It can be mounted on rail vertically or horizontally just to change the direction of mounting base.
  • Mounting bracket for board back type.
  • Meter module has warning pointer which can be regulated.
  • Ammeter and volmeter operation head:
    • Zones 1, 2, 21 and 22.
    • Degree of protection: IP66.
    • Operating temperature: -55ºC to +65ºC.
    • Material: polyamide.
    • Ammeter and volmeter module:
      • Zones 1 and 2.
      • Operating temperature: -40ºC to +95ºC.
      • Ammeter framework: electromagnetic
      • Accuracy class: l.5.
      • Overload scale: 2 times, 5 times.
      • Terminals: 2x2.5mm².

    Custom Made Solutions
    We offer multiple solutions

    Ex Ammeter · Atex Delvalle
    Do you need ATEX solutions?
    2021 product catalogues
    Customers also bought:
    Ex Voltmeter · Atex DelvalleAtex Delvalle
    Delvalle Ex voltmeter conform to Atex and IECEx certifications. Have high degree of protection up to...
    Ex Potentiometer · Atex DelvalleAtex Delvalle
    Delvalle Ex potentiometer conform to Atex and IECEx certifications. Have high degree of protection...
    Ex Ammeter · Atex Delvalle

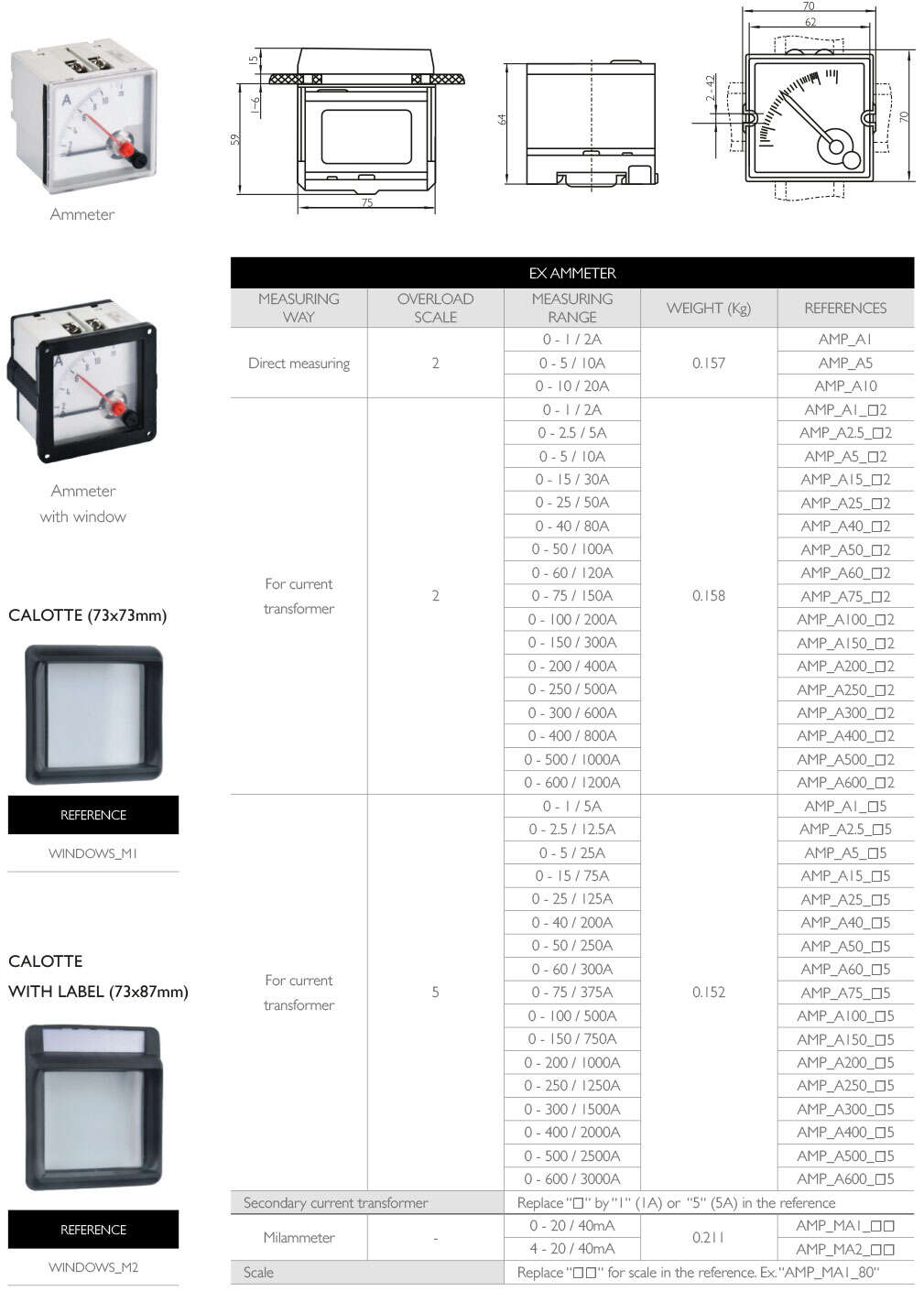

    Sketches

    PLANS AND REFERENCES · Atex Delvalle
